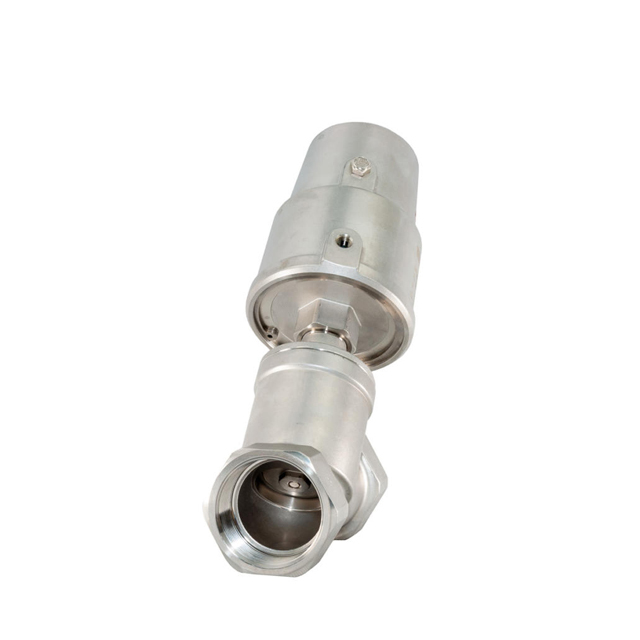

Stainless Steel Hygienic Steam Angle Seat Valve for Food
The angle seat valve can save space by maintaining the flow rate. It is a pilot angle seat valve operated by a single-acting pneumatic actuator with spring safety protection. When using it, it should be normally open or normally closed.
The product is made of stainless steel and PTFE. It can be used in most gas, liquid, steam and corrosive occasions. It has a radiator to protect the actuator. Ensure the valve has a long life.
Working Principles
According to the function of spring return to open and close, it is divided into normally open type and normally closed type.
Double acting (pneumatic head usually has two holes)
working principle: air supply controls its switch. (according to the customers requirements, double action plus spring return can also be selected for more accurate control)
Stainless Steel Angle Seat Valve Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
● Flow Rotation Quick, Low Resistance, Without any Water-Hammer
● Y type Shape structure design enabling large flow compared to the Ball valve
● Compact Structure, fast response
● External pneumatic pilot for increased service life and maintenance free.
● Installation: Any position
Application
Bio pharmaceutical industry, drink filling Machinery, chemical industry, beverage, dairy, gas industry and so on.
Specific usage areas include: as switches in automatic control systems, Industrial Compressors, Steam Applications, Printers & Paint Dispensers, Water Treatment Machines, bottling & Dispensing Machines, Washing & Laundry Machines and more.
