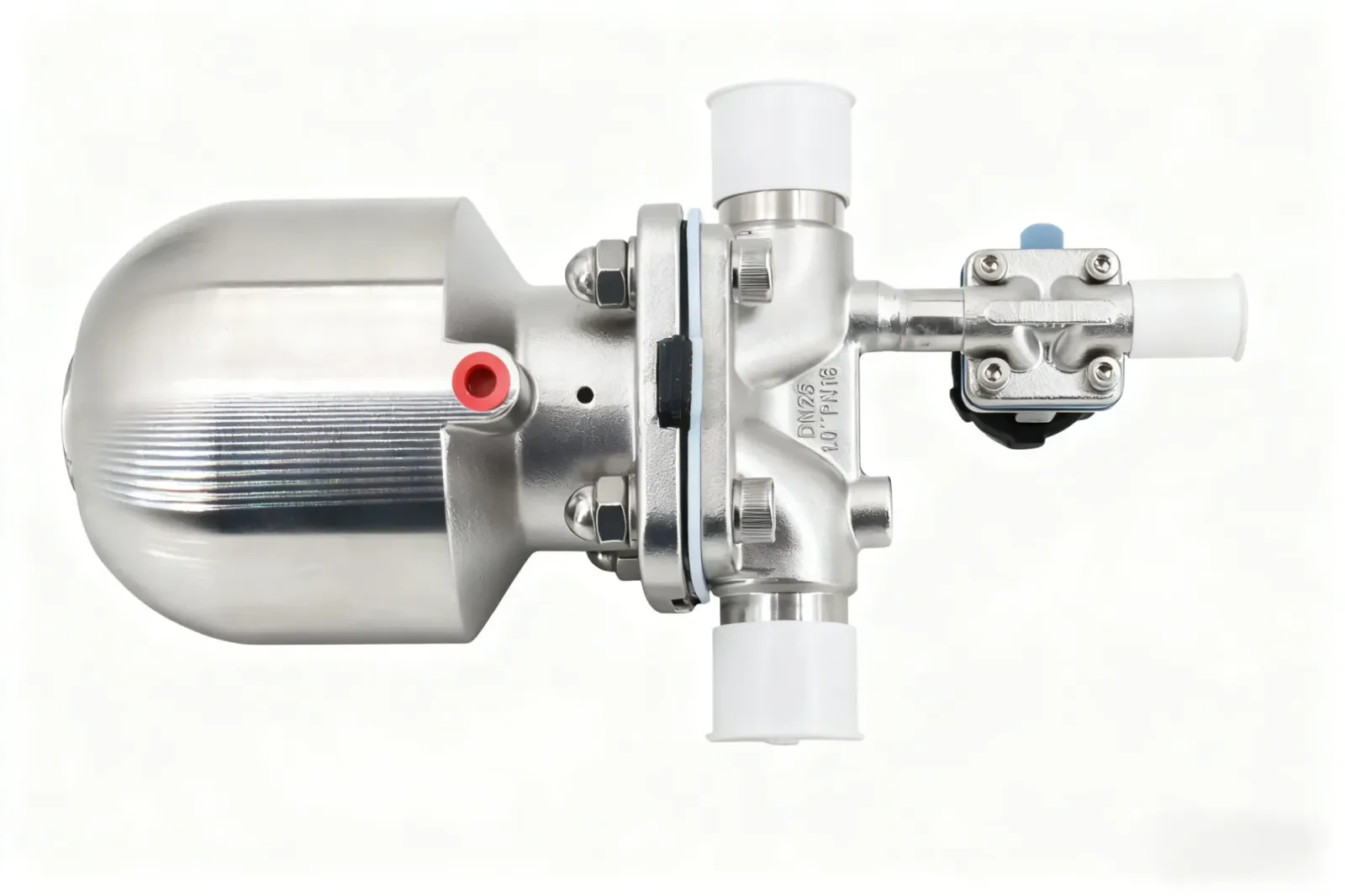

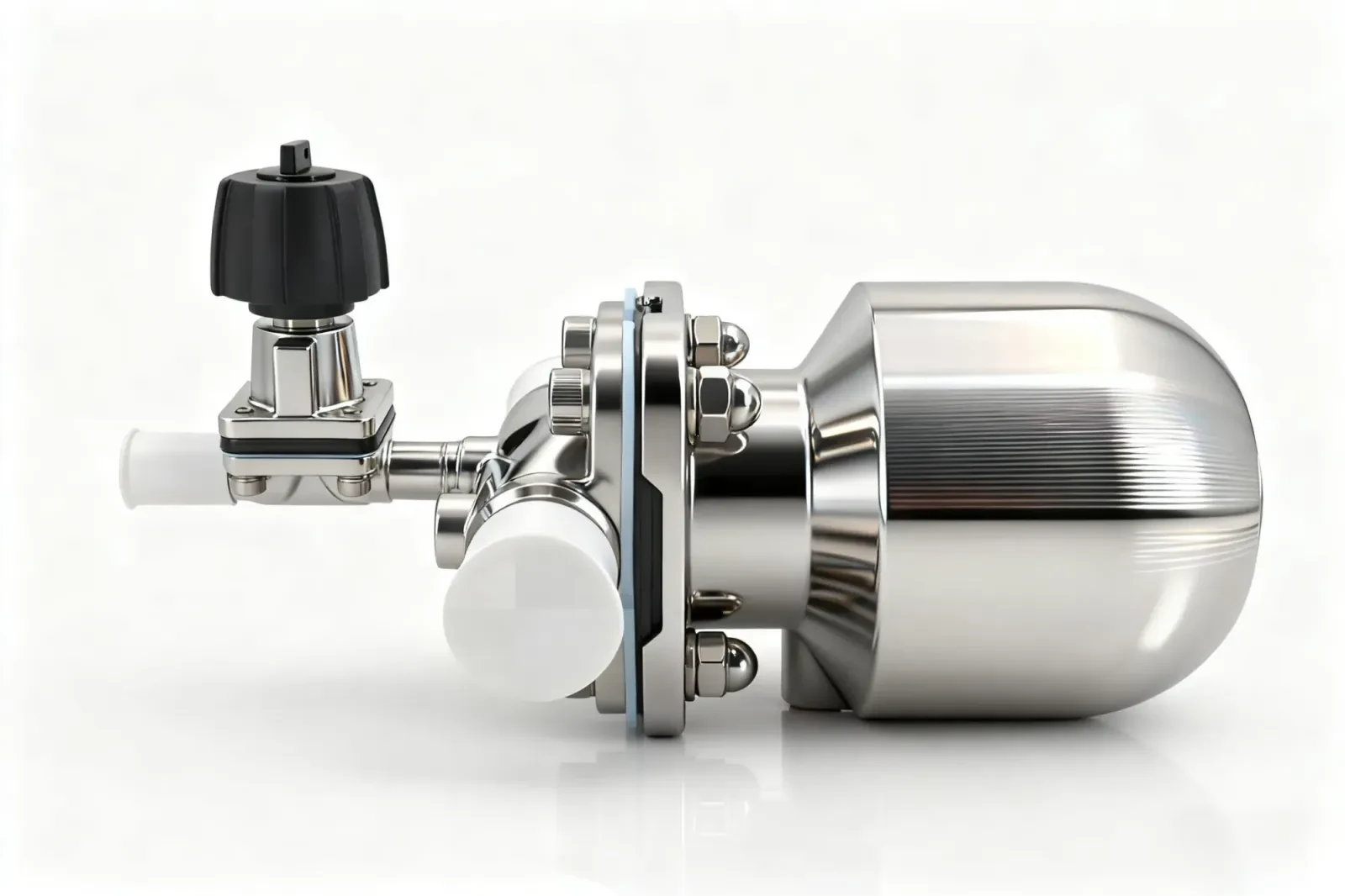

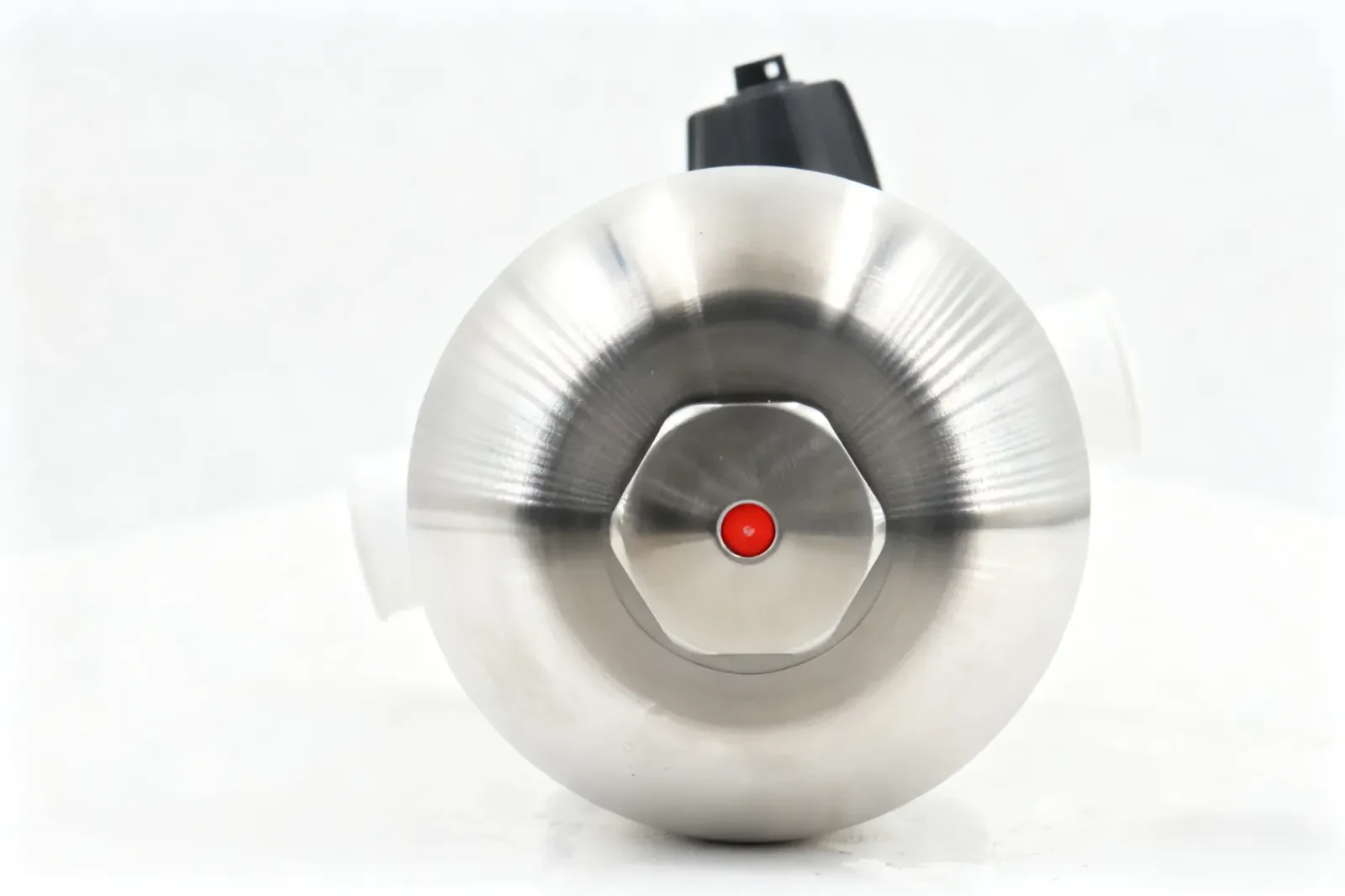

Stainless Steel Sanitary Pneumatic Straight-through Quick-install Diaphragm Valve

The Stainless Steel Sanitary Pneumatic Straight-through Quick-install Diaphragm Valve operates by using a pneumatic actuator to control the movement of a flexible diaphragm. When compressed air is applied, the actuator pushes or lifts the diaphragm, opening or closing the straight-through flow path. The diaphragm forms a tight seal against the valve seat, preventing leaks and ensuring hygienic operation. Its straight-through design allows smooth, unobstructed flow, minimizing pressure drop and residue. Quick-install connections enable easy assembly or removal for maintenance. This mechanism provides rapid, reliable, and precise flow control, making it suitable for sanitary processes in food, pharmaceutical, and biotechnology applications

• Pneumatic Actuation – Uses compressed air for fast, automated opening and closing, improving process efficiency and reducing manual intervention.
• Straight-through Design – Provides minimal pressure drop and smooth, unobstructed flow, ideal for liquids, gases, or viscous media.
• Diaphragm Seal – Ensures leak-free operation and hygienic isolation between fluid and mechanical components.
• Quick-Install Connections – Tri-clamp or sanitary fittings allow fast assembly and easy maintenance without extensive downtime.
• Stainless Steel Construction – Durable and corrosion-resistant, suitable for sanitary applications in food, pharmaceutical, and biotech industries.
• Rapid and Reliable Response – Provides precise control with minimal hysteresis and stable flow regulation in critical processes.

The Stainless Steel Sanitary Pneumatic Straight-through Quick-install Diaphragm Valve is widely used in industries requiring automated and hygienic flow control. Typical applications include beverage production, dairy processing, pharmaceutical manufacturing, biotechnology, and high-purity chemical systems, where rapid response, leak-free operation, and easy maintenance are essential for process efficiency and product safety
