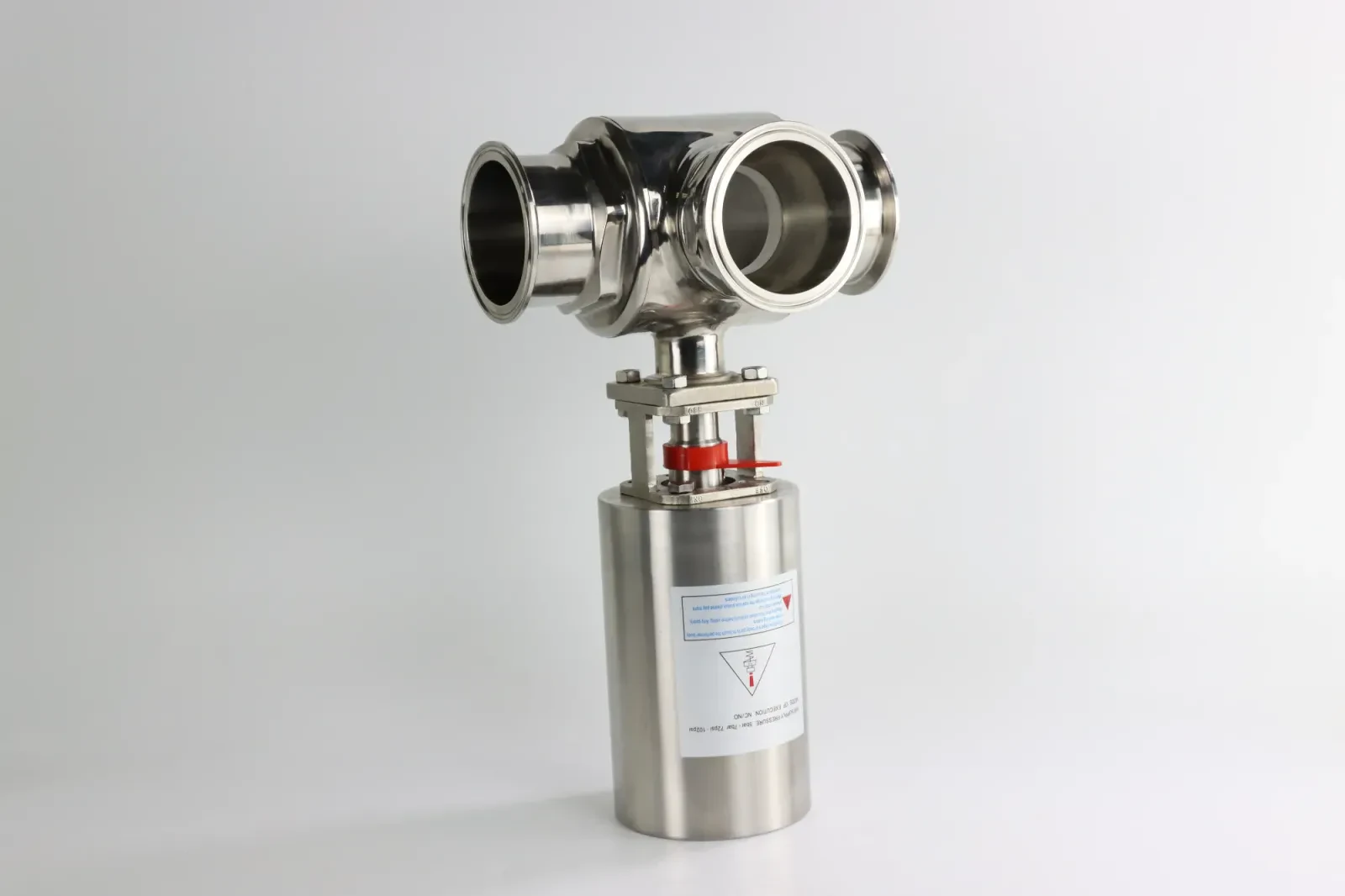

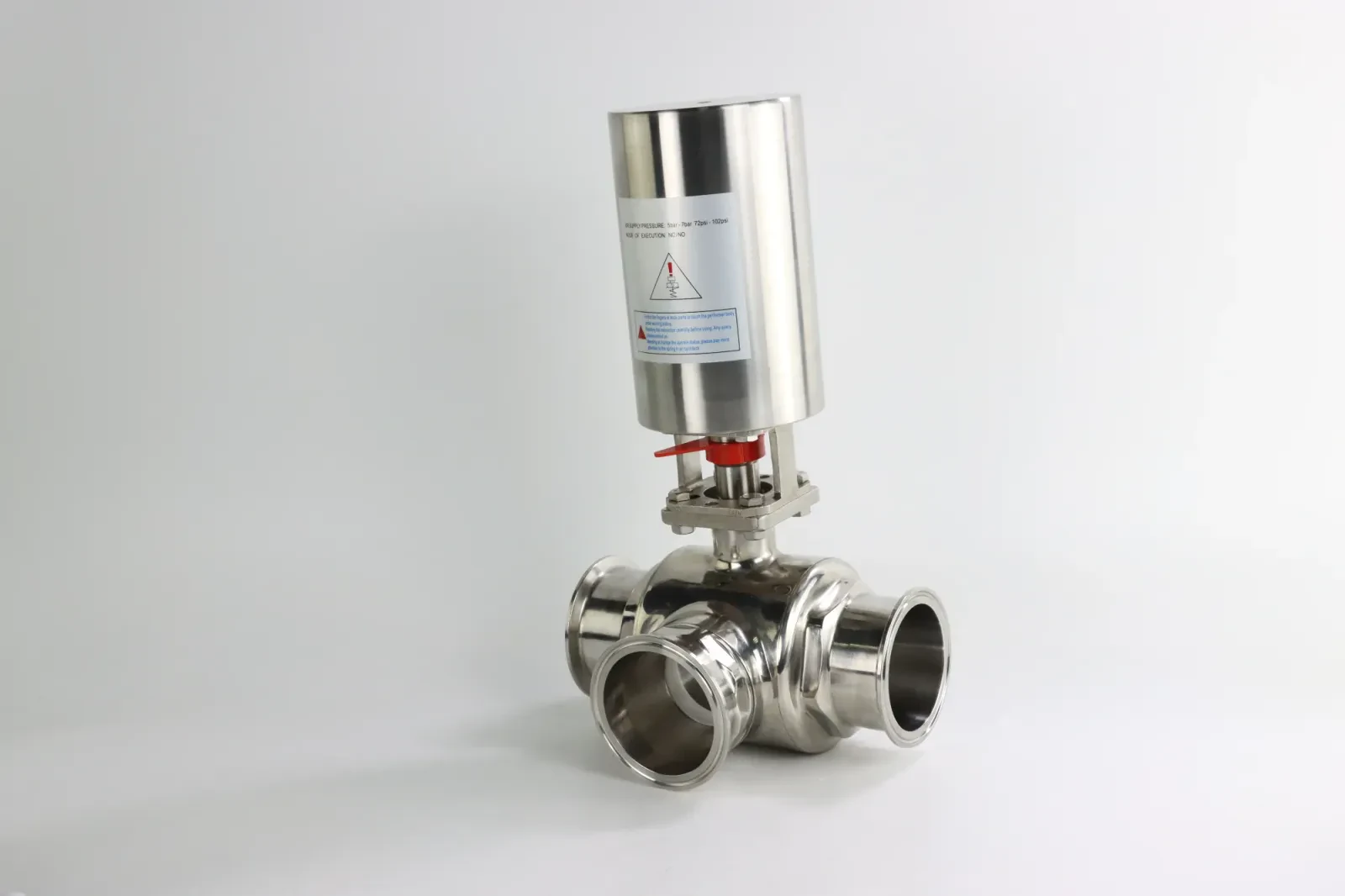

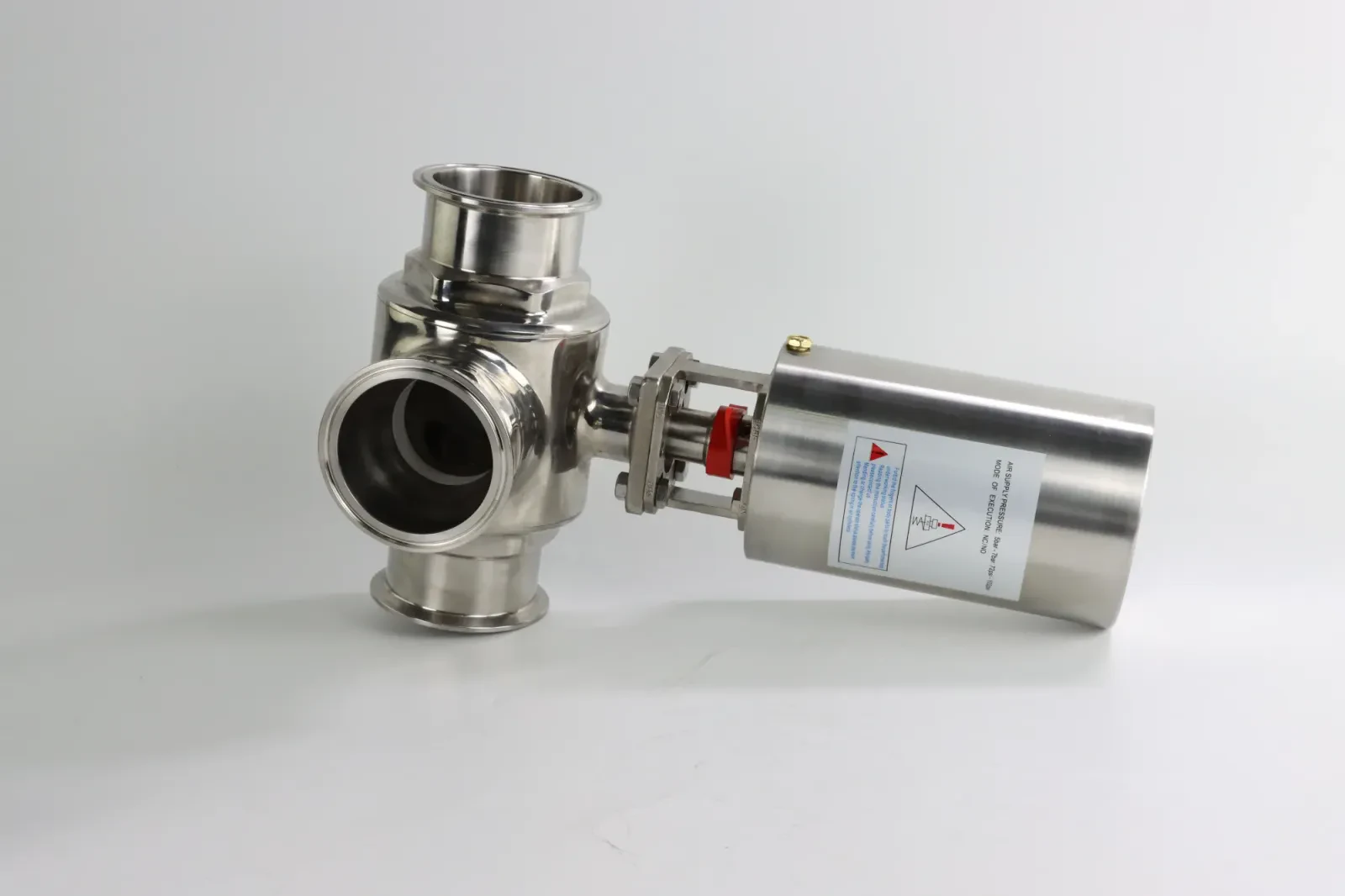

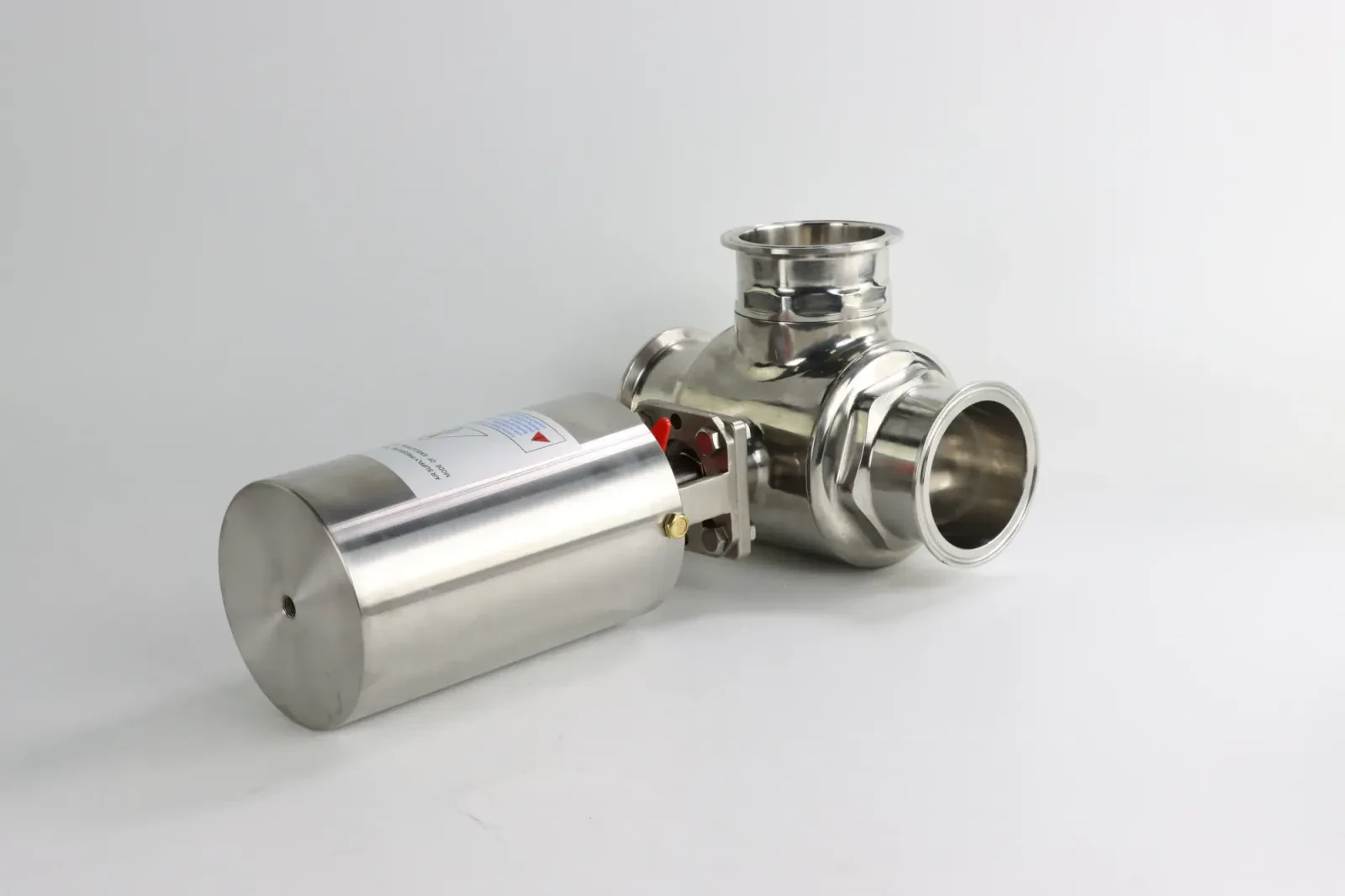

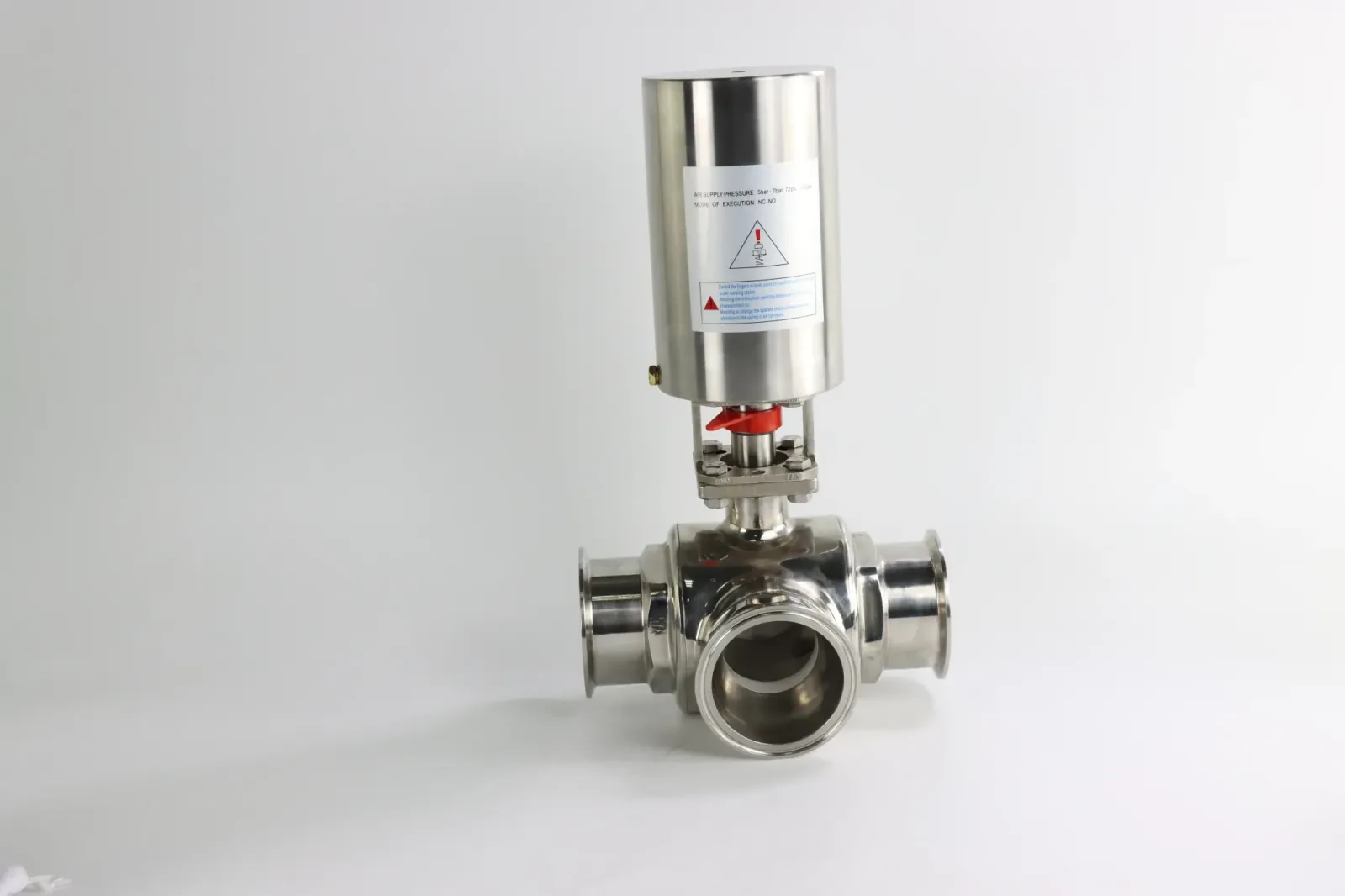

Food Chemical Three-Way Vertical Sanitary Three-Clamp Pneumatic Ball Valve

品牌: JONENG
型号: JN-DPHV-23
物料号: LD-555904148

The stainless steel sanitary pneumatic forged T-type three-way ball valve is a three-way ball valve driven by a pneumatic actuator with a T-type hole design. The valve body is made of forged stainless steel to ensure that the valve has high strength and durability. This valve is used in fluid pipeline systems, and its main function is to regulate the flow direction, flow distribution or fluid switching of the fluid. By controlling the valve switch through the pneumatic actuator, it can realize the flow conversion of the fluid between multiple pipelines. It is suitable for complex systems that require multi-directional fluid regulation and is widely used in industries such as petroleum, chemical, pharmaceutical, food and beverage. The stainless steel sanitary pneumatic forged T-type three-way ball valve is widely used in petroleum, chemical, pharmaceutical, food, beverage and water treatment pipelines, mainly for fluid diversion, confluence or flow direction switching.

The main purpose of the design of the stainless steel sanitary pneumatic forged T-type three-way ball valve is to achieve efficient regulation and precise control of the fluid in the pipeline system. The pneumatic drive method is adopted, so that the valve can be operated remotely or automatically, reducing manual operation and improving efficiency. The use of forged stainless steel materials ensures the high pressure and corrosion resistance of the valve, ensuring long-term stable operation in harsh working environments.

Max. working pressure	150 PSI
Temperature range	-20° ~ +150°C or higher upon request
Sizes available	1/2" to 4"
End connection	Tri-Clamp, Butt-Weld, Flange, Threaded
Body material	Stainless Steel 316L
Ball material	Stainless Steel 316L
Seal material	FDA Approved EPDM, Silicone, Viton
Actuator Options	Manual, Pneumatic
Surface Finish	Ra ≤ 0.8μm (Standard), Ra
Flow Control	Linear
