Tee

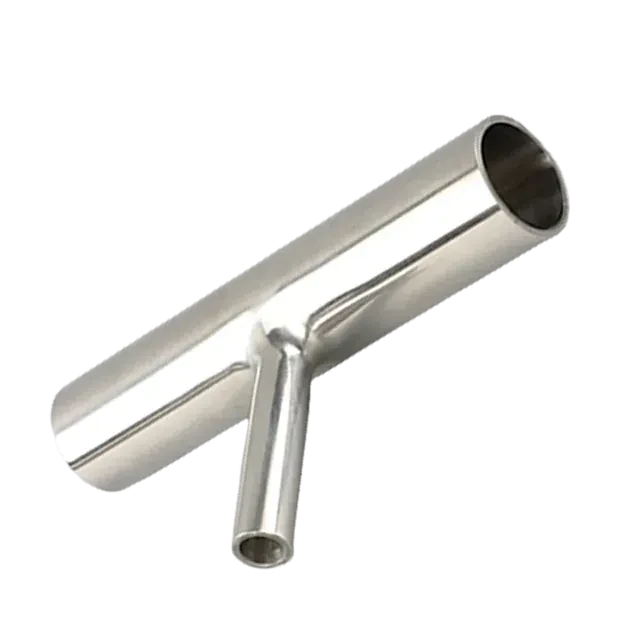

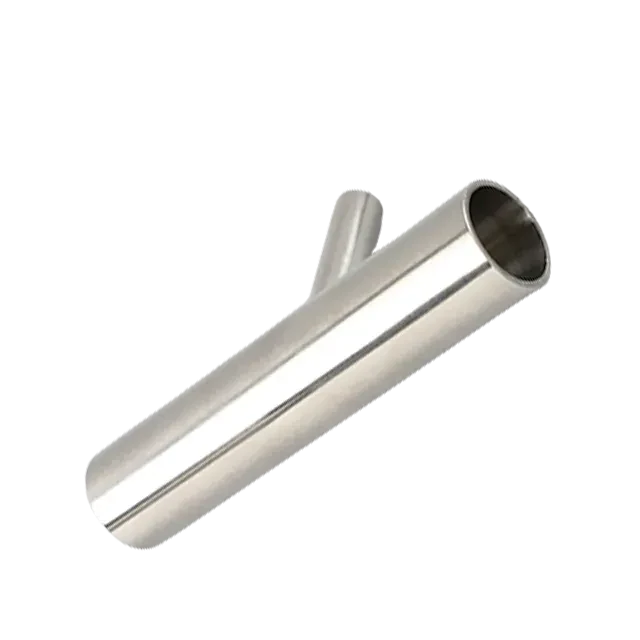

Stainless Steel Mirror Surface AS1528.3-7MP Long Welded Tee Ends Ferrule JN-FT-23 5019

品牌: JONENG
型号: JN-FT-23 5019
物料号: LD-519668878

Stainless steel tee is a kind of pipe fittings, connecting with three pipes, changing the direction of the flowing direction. The most popular type is a straight pipe tee. Tees have two outlets from the main flow direction and there is also a third outlet in a 90degree direction way side. The reducing tee is also very common so we can connect the pipeline with different sizes of pipes.

Material	SS304, SS316L
Size	1/4''-12''
Raw material standard	ASTM A-269, A-270
Connection	Welded end, Triclover end, Male, Female, Flange
Surface	Satin finish, Mirror polish, Vibrating surface, Pickled,EP, Sand Blasting
Standard	3A/SMS/DIN/ISO2037/ISO1127/AS1528/BS/BPE/IDF
Certificate	ISO, PED,FDA
Products Range	Elbow	90degree elbow, 45degree elbow, 180degree elbow
	Tee	equal tee, reducing tee
	Reducer	concentric reducer, eccentric reducer
Application	Food, Beverage,Phamacy, Dairy
