Butterfly Valve

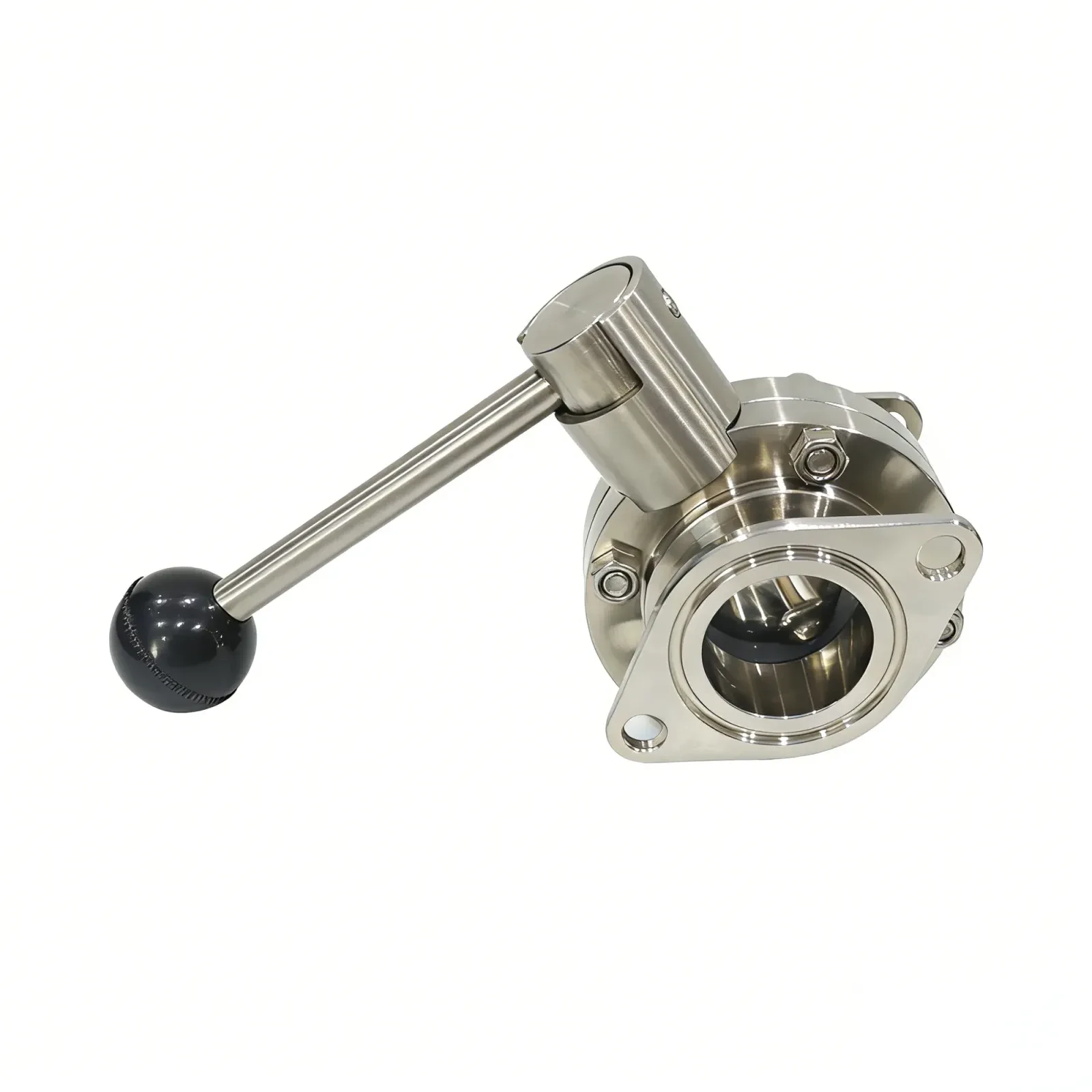

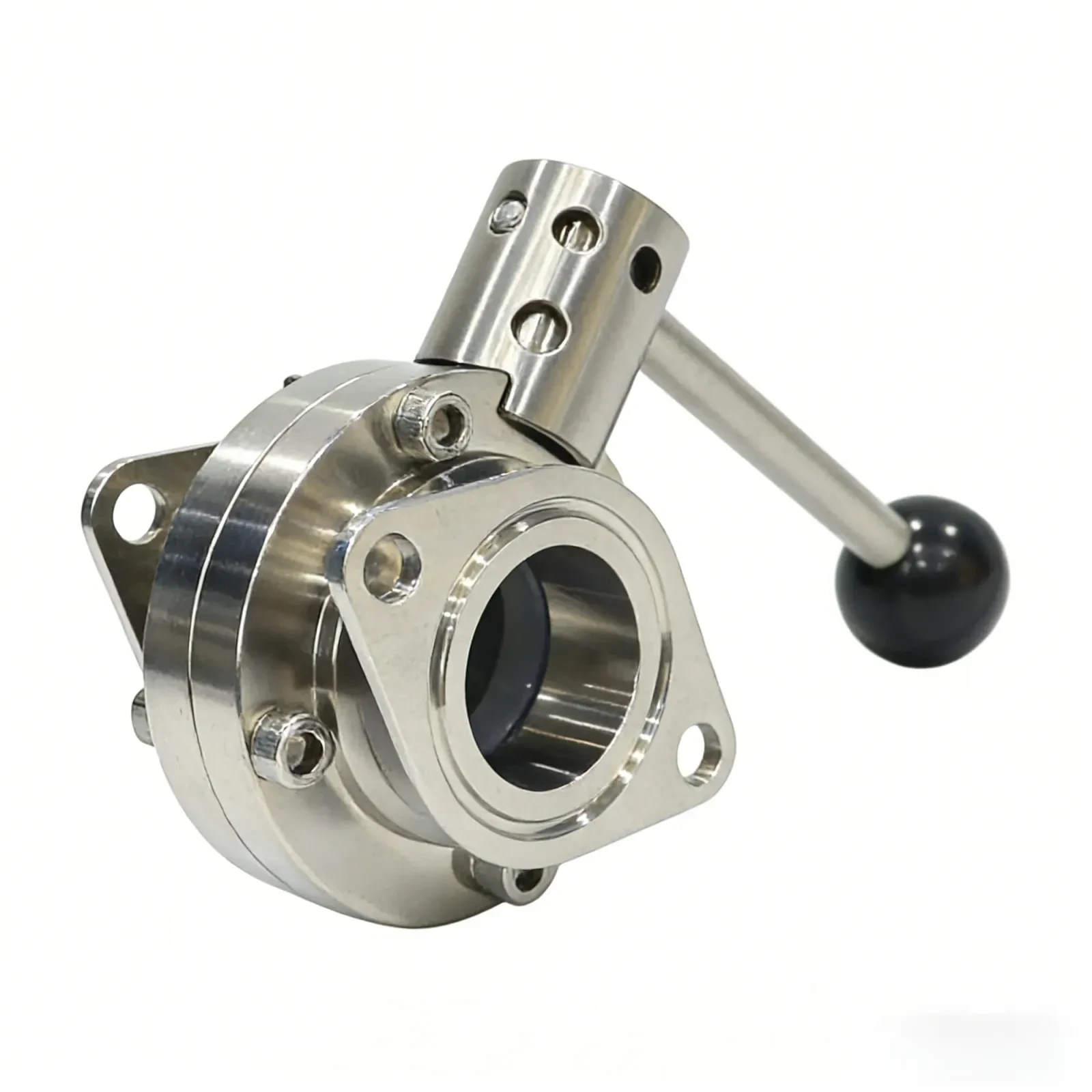

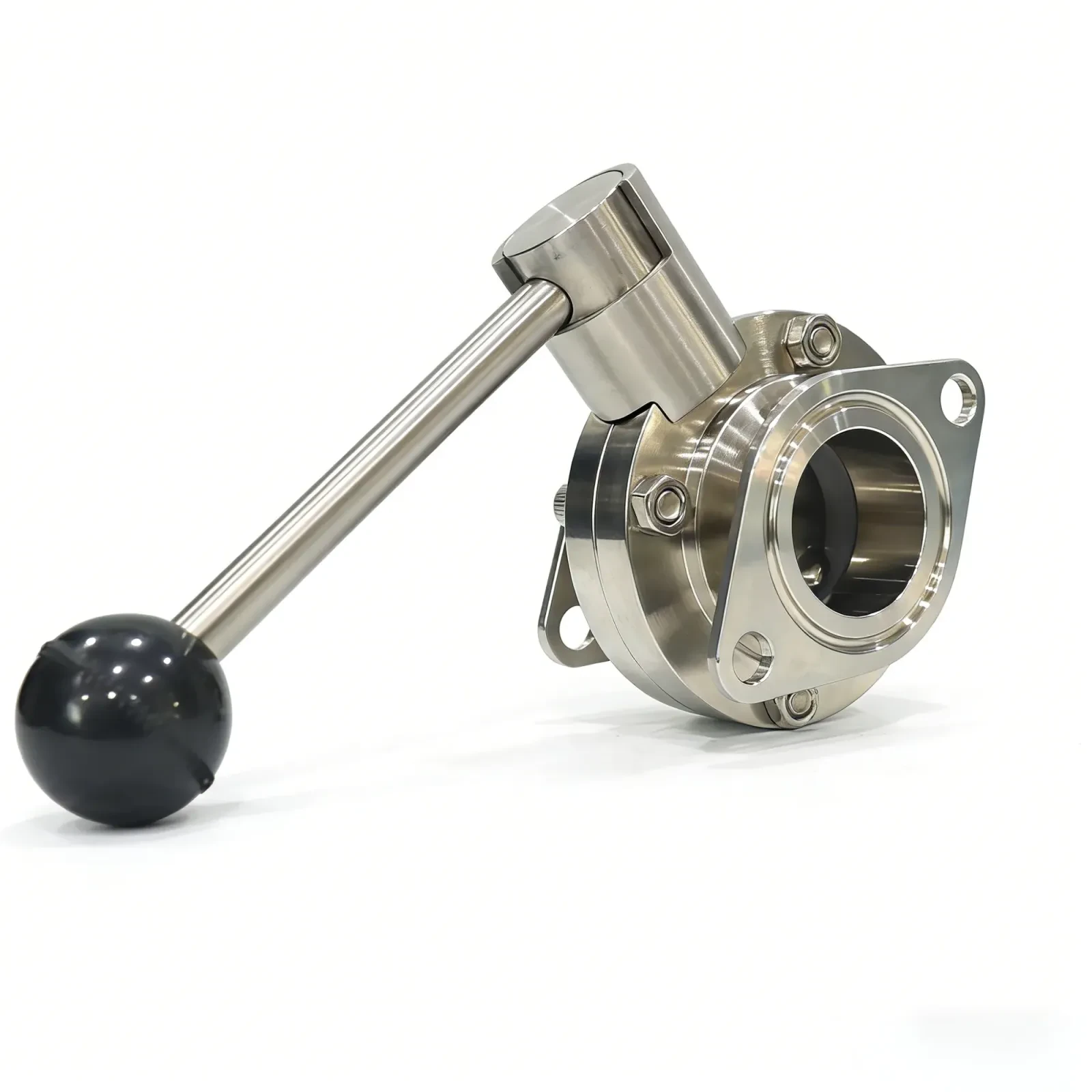

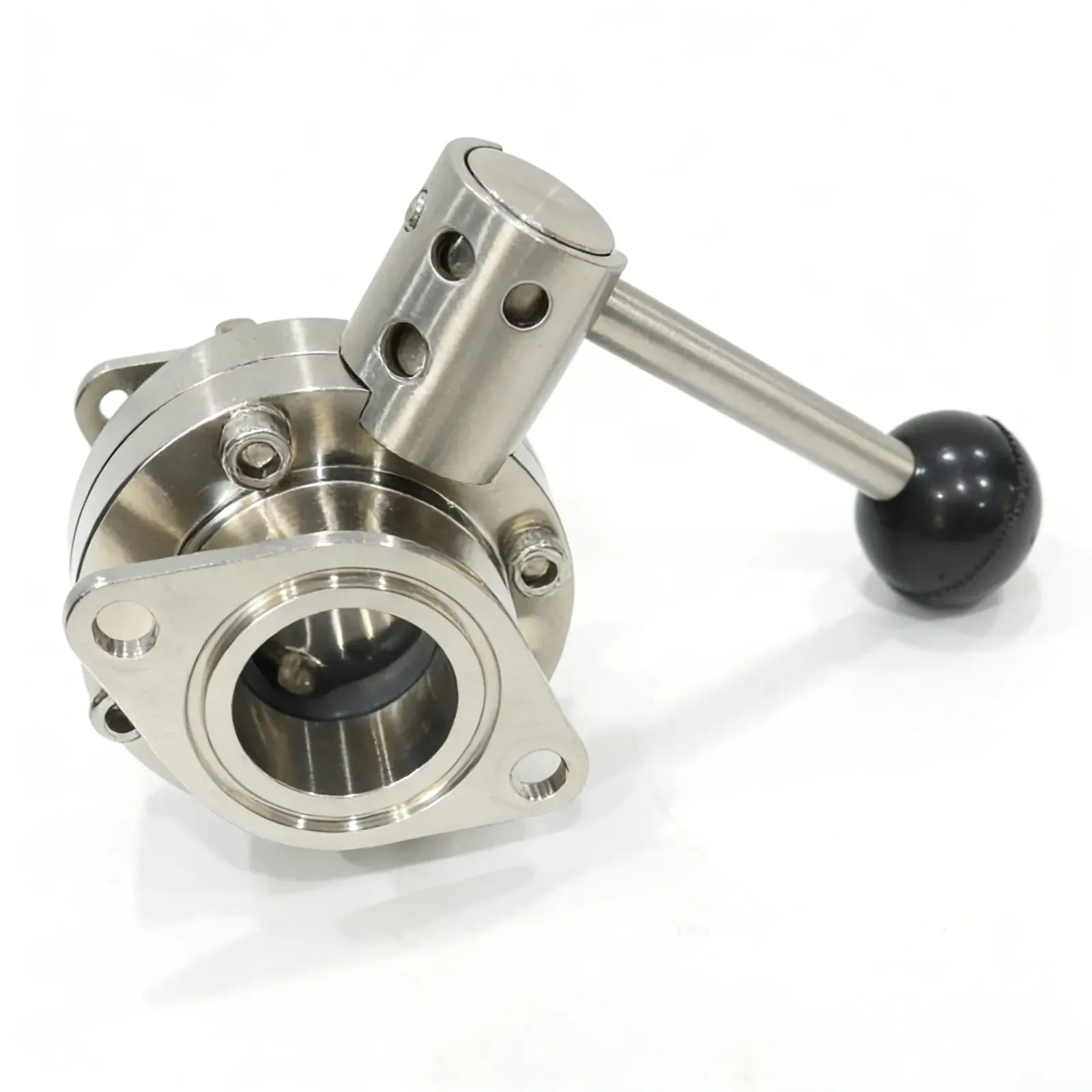

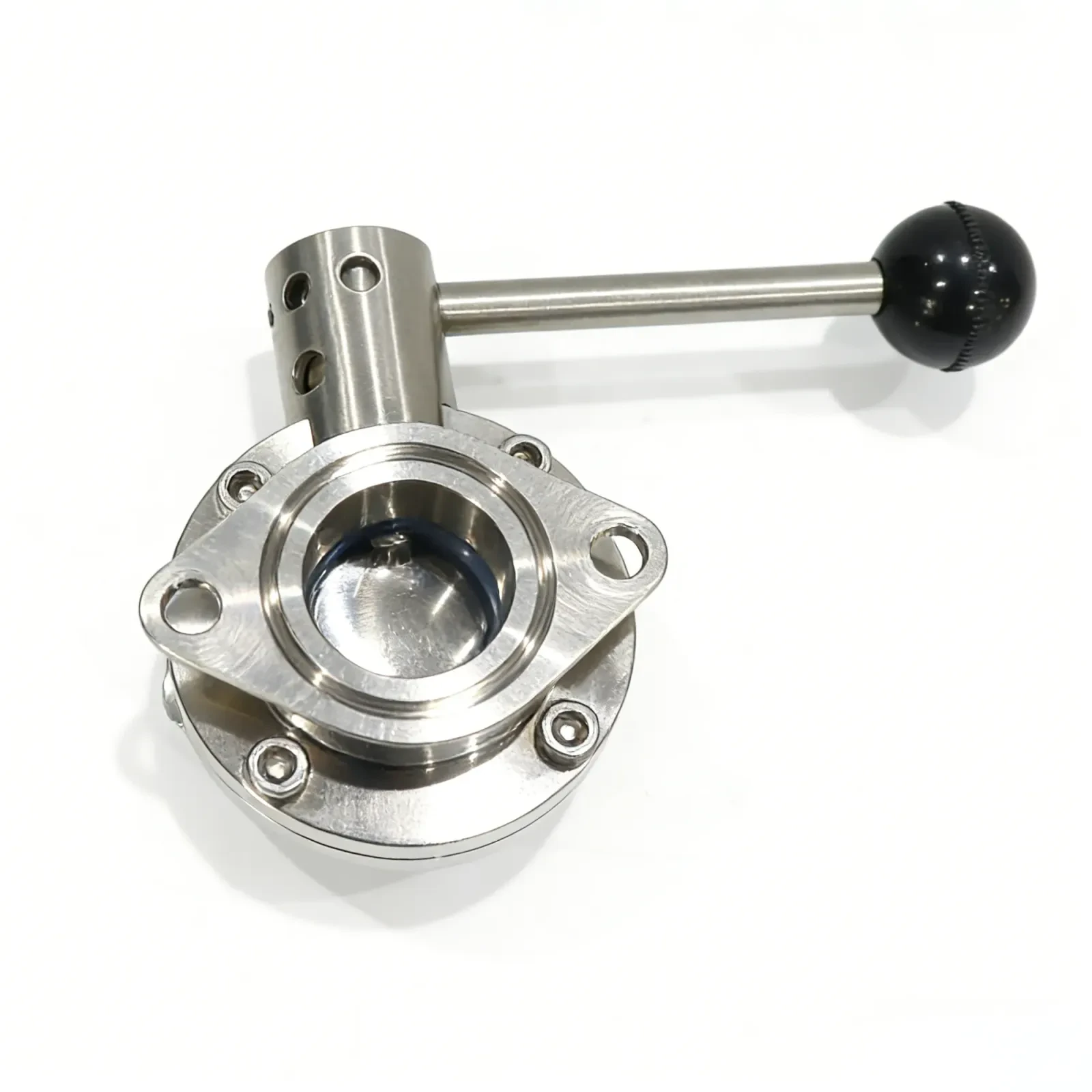

STAINLESS STEEL manual Drive Wafer Bolei Powder Butterfly Valve

品牌: JONENG
物料号: LD-581209838

The stainless steel manual drive wafer Bolei powder butterfly valve is a compact, wafer-type valve designed for precise flow control of powders and bulk materials, featuring manual operation, reliable sealing, corrosion-resistant stainless steel construction, and easy installation between standard flanges.

The stainless steel butterfly valve is a compact, wafer-type valve designed for precise flow control of powders and bulk materials, featuring manual operation, reliable sealing, corrosion-resistant stainless steel construction, and easy installation between standard flanges.

Working Pressure	10 Bar (Max. Pressure is 16bar for but welded connection in small sizes
Working temperature	-10ºC TO + 120ºC
Size	1/2”-12”, DN15-DN300
Grade	AISI304 and AISI316L
FDA approved gaskets in silicone, EPDM, viton, PTFE
Connection	Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection
Surface	Sanitary inside polish (Ra ≤ 0.8 μm)
Surface	Sanitary outside polish (Ra ≤1.6 μm)
Standard	ISO, 3A, SMS, RJT, DIN and so on
Butterfly valve disc and body is made from forging
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.

Valve parts

Body	Stainless steel AISI316L or AISI 304 (1.4301/1.4404)
Disc	AISI304 or AISI316L
Pull-position handle	Stainless Steel Material, Round type or square type
Multi-position Gripper Handle	ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type
Gasket	EPDM, VITON(FPM), Silicone, different color is available
Bushing	EPDM or PTFE, other material request
Nut	Stainless Steel 304 or 316 Material or other request
Bolt	Stainless Steel 304 or 316 Material or other request
