Safety Valve

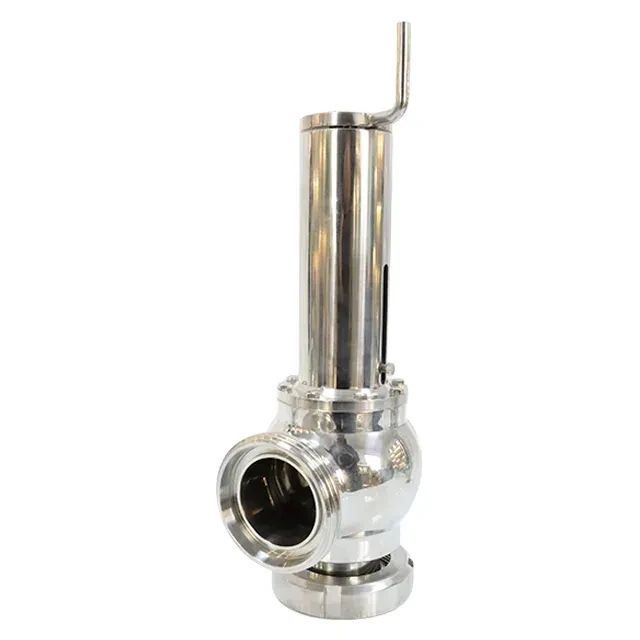

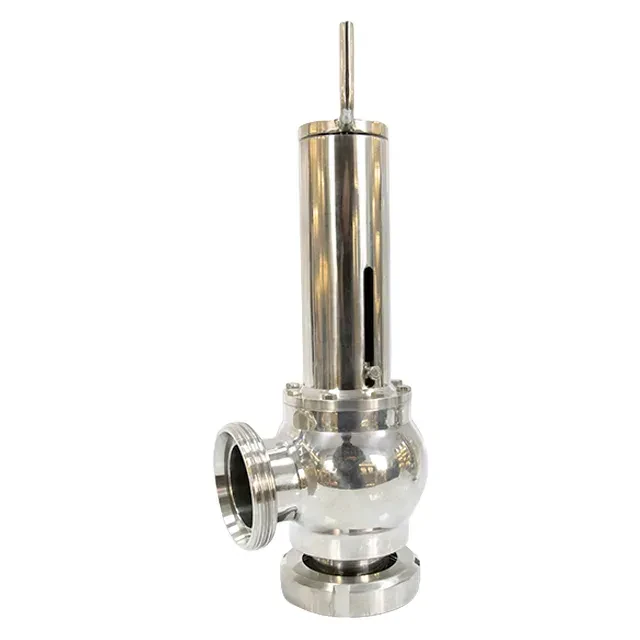

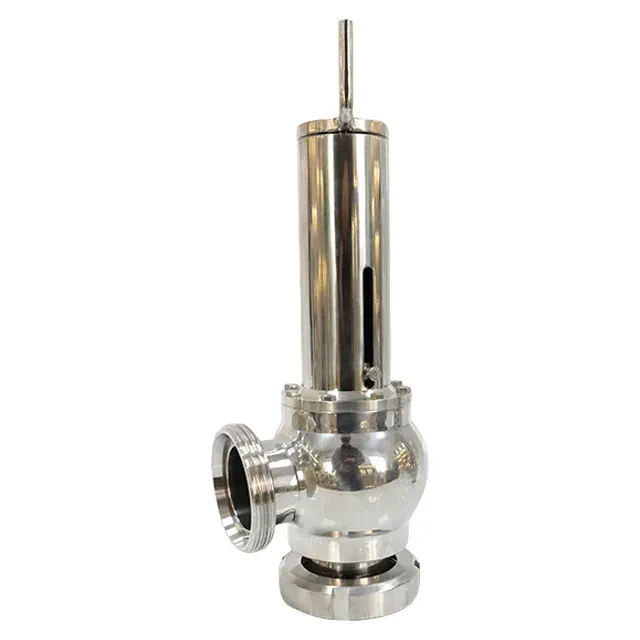

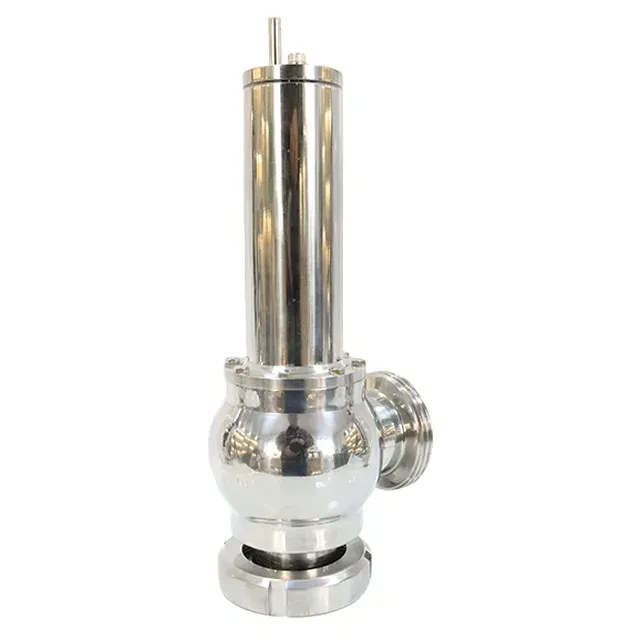

Sanitary Stainless Steel Spring Loaded Pressure Relief Safety Valve

Marca: JONENG
Modelo: JN SV 1076
Referencia: LD-586379398

The safety valve is used to used to keep the set pressure in the system. The sanitary safety valve plays a role of safety protection in the system. When the system pressure exceeds the specified value, the sanitary safety valve opens to discharge part of the gas/fluid in the system into the atmosphere/pipeline, so that the system pressure does not exceed the allowable value, so as to ensure that the system does not cause accidents due to excessive pressure.

The safety valve is used to used to keep the set pressure in the system. When the system pressure is higher than set pressure, valve open to reduce the pressure, so it also named pressure relief valve or pressure release valve.

Before the valve is dispatched, we have set the pressure to given value. If needed, a pressure gauge needs to be installed before the inlet of safety valve.

Type	Ball type, line type
Working Pressure	0bar-10bar
Working Temperature	-10°C ~ +121°C
Connection end	welded,clamped , threaded, union type
Connection Standards	DIN, SMS, 3A, ISO
Size	1”-4”, DN25-DN100
Material	SS304, SS316L from solid bar raw material
With internal finishing Ra16<0.4micron
Surface finish	Sand blasting type, or mirror type
Seal Material	FDA approved EPDM, VITION, NBR, SILICOME
Adjusting pressure	0.5bar/unit
Manually adjustable to keep the system safety
Lock can be available for settling the relief pressure
