Sight Glass

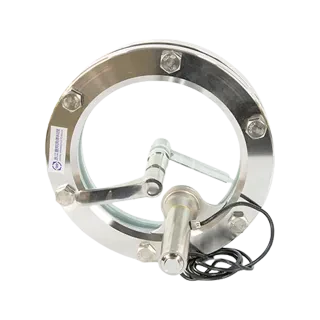

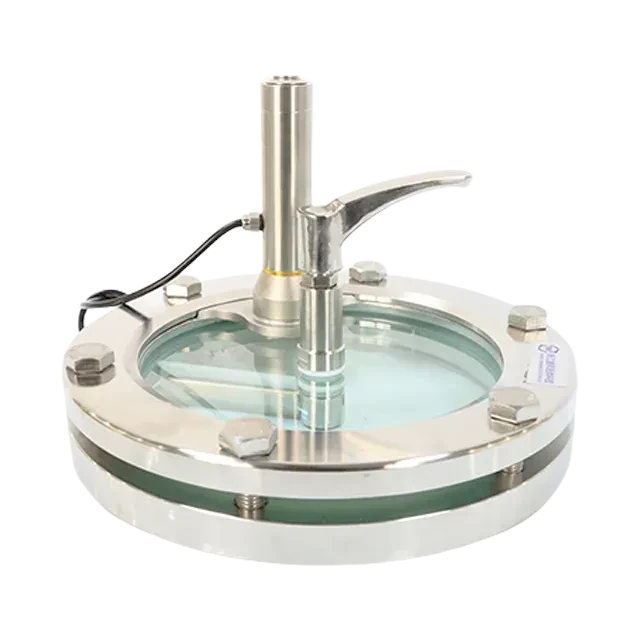

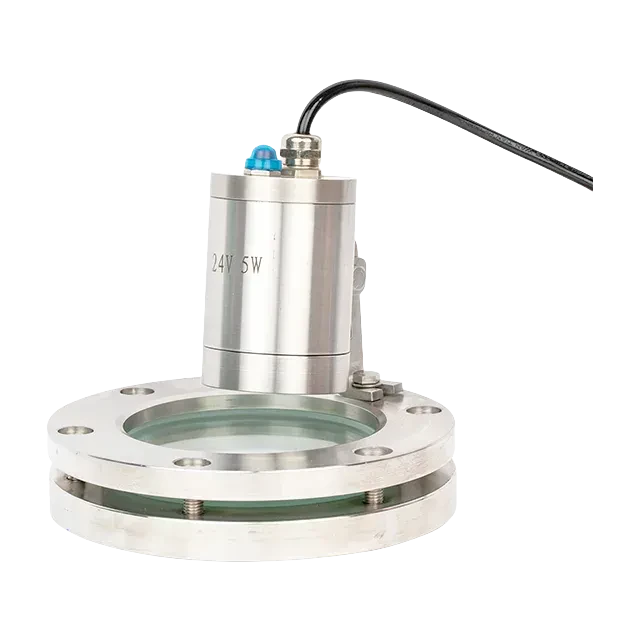

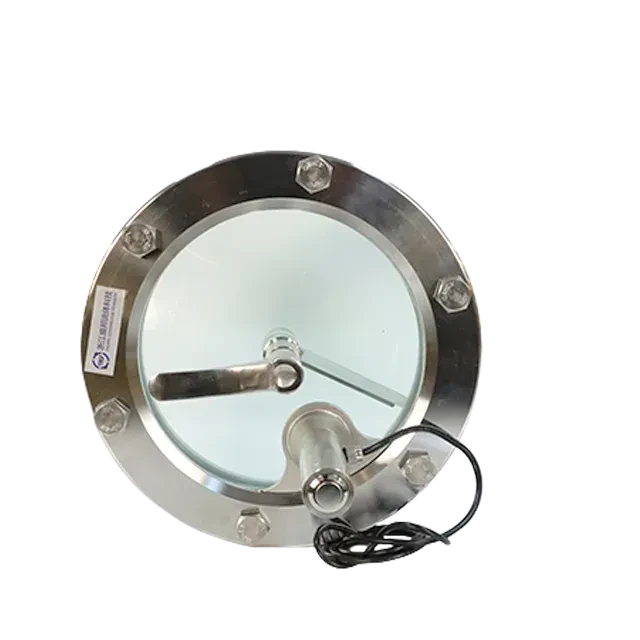

Sanitary Stainless Steel Sight Glass with Scraper & Wired LED Light

Brand: JONENG
Part number: LD-516613868

The sight glass helps in providing the easy access for the visual observation of the liquids or any material in the tank, pipelines or the vessels. It also help in establishing the connection between 2 pipes and also visualizing the flow of material between them. The sight glasses are used for checking the liquid inside the system. For the pipelines, we have straight type, cross type, Ball cross type. For the tanks, we have union type sight glass.

The sight glass helps in providing the easy access for the visual observation of the liquids or any material in the tank, pipelines or the vessels. It also help in establishing the connection between 2 pipes and also visualizing the flow of material between them.The sight glasses are used for checking the liquid inside the system. For the pipelines, we have straight type, cross type, Ball cross type. For the tanks, we have union type sight glass.

Size	1” to 6”
End connections	Sanitary clamp, butt-weld, i-line or others on request.
Guard	polycarbonate guard (protects from being broken or damaged)
Seal material	PTFE, silicone,EPDM
Studs and Nuts	AISI 304
Flange	AISI304, AISI 316L
Pressure	- up to 10 bar
Temperature	- up to 250 F.
