Angle Strainer

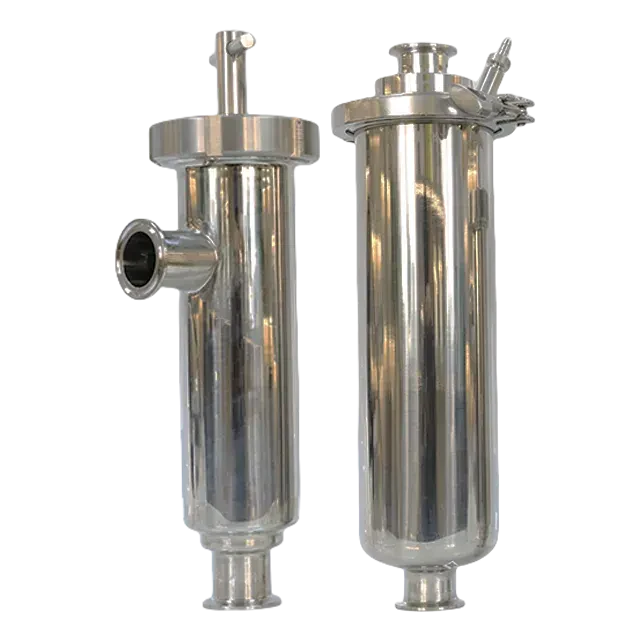

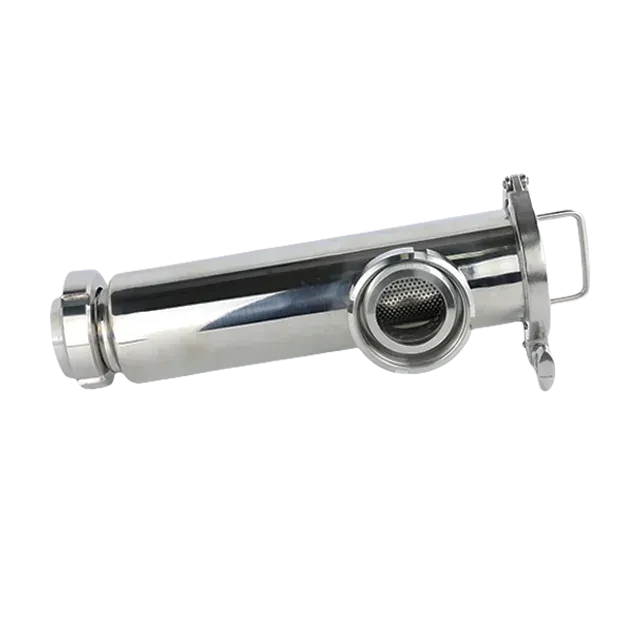

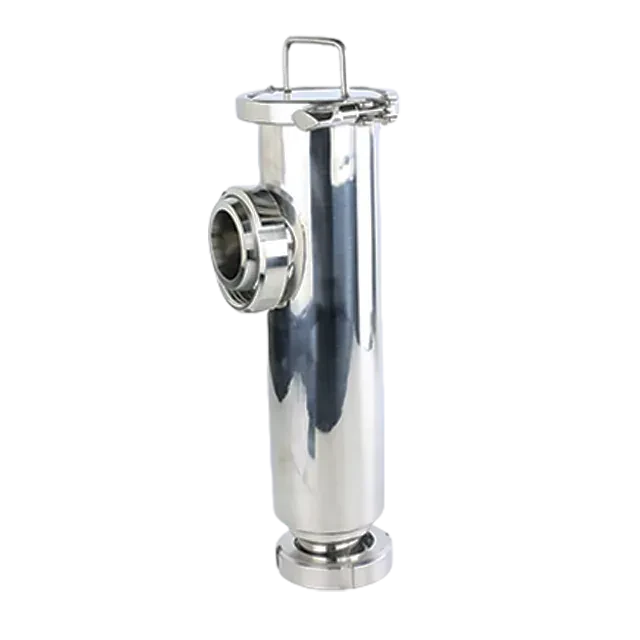

Sanitary Stainless Steel SS316L Food Grade Union Nut Angle Strainer Filter

Brand: JONENG
Model: JN-STJY-23 1001
Part number: LD-556879768

A device made to filter impurities, particles, pollutants or undesired particles out of a liquid or gas as it passes through a pipeline or tube. To guarantee the fluid’s cleanliness and quality, inline filters are frequency utilized in a variety of application. The line type filters can be used for filtering the solid particles in liquid . The inlet and outlet are in the same line. So it is widely used for pipeline.

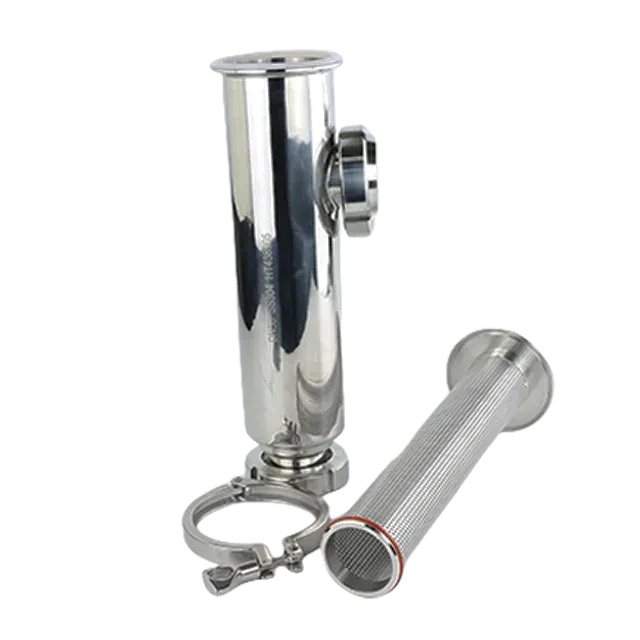

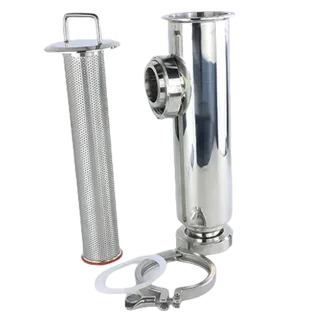

This union nut angle strainer helps maintain fluid quality and protect process equipment by retaining particles. It consists of a housing with an inlet and outlet, with the straining element positioned so that the flow passes through it. The element includes a support tube and straining mesh, secured by a rubber gasket between two flanges.

Size	1” to 8”
Material	AISI304, AISI316
Seals and gasket	PTFE, EPDM, silicon. Viton
End connection	sanitary clamp, butt weld,threaded, union...
Straining mesh	¼ “ or 1/8” holes in backup tube 0.5mm,1.0mm,2.0mm,3.0mm,5.0mm,8.0mm..
Maximum pressure	up to 1.0mpa
Maximum temperature	120°c
Max flow rate	15T/H
