90D elbow

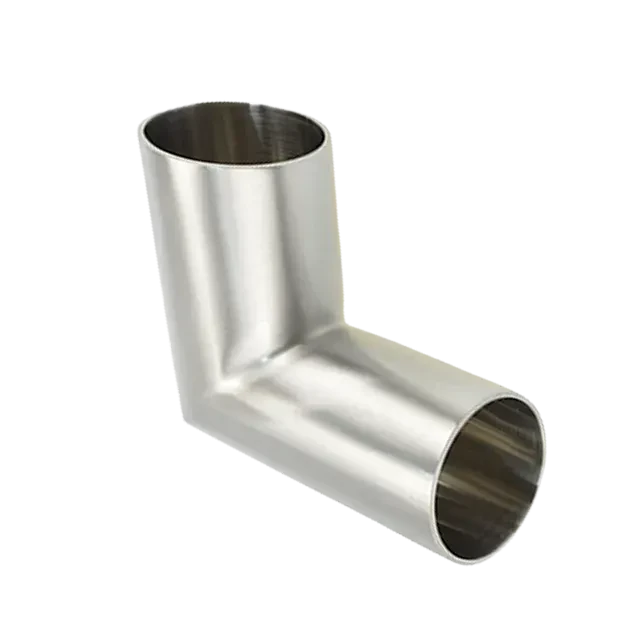

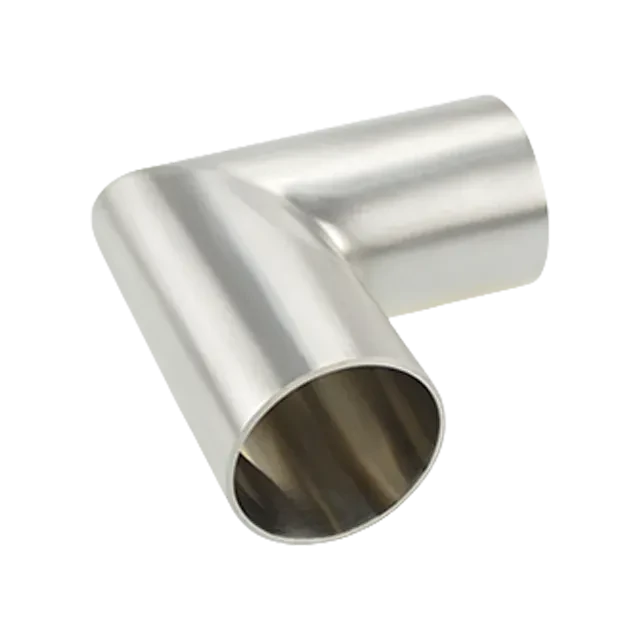

Stainless Steel AISI304 BS 3A JN-FT-20 6008 90 Degree Angle Bend Welded Elbow

Brand: JONENG
Model: BS JN-FT-20 6008
Part number: LD-784386788

Stainless steel elbow is a kind of pipe fittings, connecting with two pipes, changing the direction of the flowing direction. Normally there are 3 common angles, 45degree, 90degree, 180degree, but there are aslo some elbows are which can be 60degree, 70degree as per the requirement from the pipeline.

Stainless Steel AISI304 BS 3A JN-FT-20 6008 Degree Angle Bend Welded Elbow

Material	SS304, SS316L
Size	1/4''-12''
Raw material standard	ASTM A-269, A-270
Connection	Welded end, Triclover end, Male, Female, Flange
Surface	Satin finish, Mirror polish, Vibrating surface, Pickled,EP, Sand Blasting
Standard	3A/SMS/DIN/ISO2037/ISO1127/AS1528/BS/BPE/IDF
Certificate	ISO, PED,FDA
Products Range	Elbow	90degree elbow, 45degree elbow, 180degree elbow
	Tee	equal tee, reducing tee
	Reducer	concentric reducer, eccentric reducer
Application	Food, Beverage,Phamacy, Dairy
