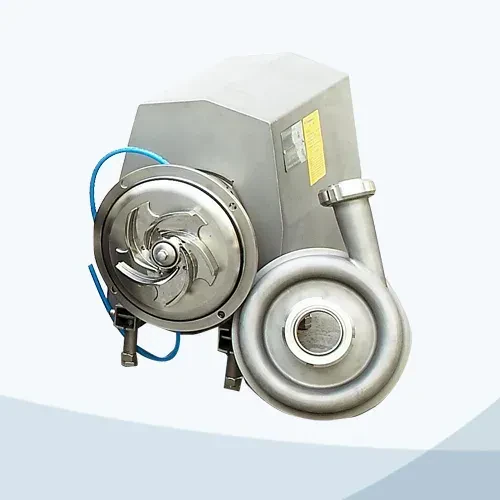

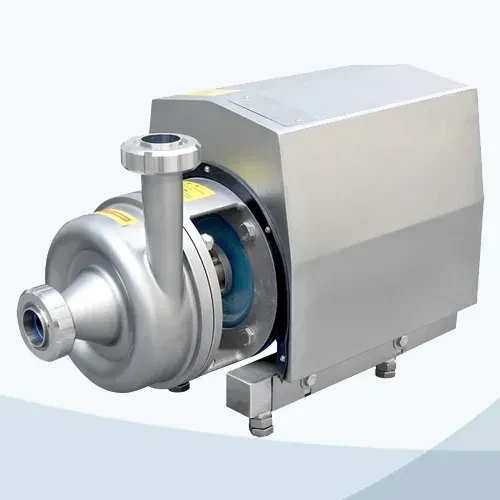

Stainless Steel Hygienic Horizontal Centrifugal Pump With Cooling Device

Brand: JONENG
Part number: LD-45675869

Our centrifugal pump is a sanitary pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical, dairy, milk, bear industries.

Some of its uses include processes in the brewing, dairy and beverage industries, and with the appropriate options it can also be used in complex applications such as Evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.

We have open impeller and close impeller types. And according to customers' requirements, we design movable type and explosion type.

Motor	0.55-22Kw
Impeller	Open type
Rotating speed	2900rpm(50Hz) or 3600rpm(60Hz)
Flow	1.5-120/h
Lift	0-75m
MAX pressure	7Bar
MAX temperature	120degree
Connection	Clamp, Thread, Flange, Welding
Standard	DIN, SMS, 3A, ISO, IDF, RJT
Mechanical seal	Single mechanical seal and double mechanical seal
Motor housing	Cold rolled stainless steel plate
Investment casting impeller	AISI 304/316L
Contact parts with material	Viton, EPDM
Gasket	SSC-Sic/EPDM
Internal surface	Ra≤ 0.8um
External surface	Mirror polish
