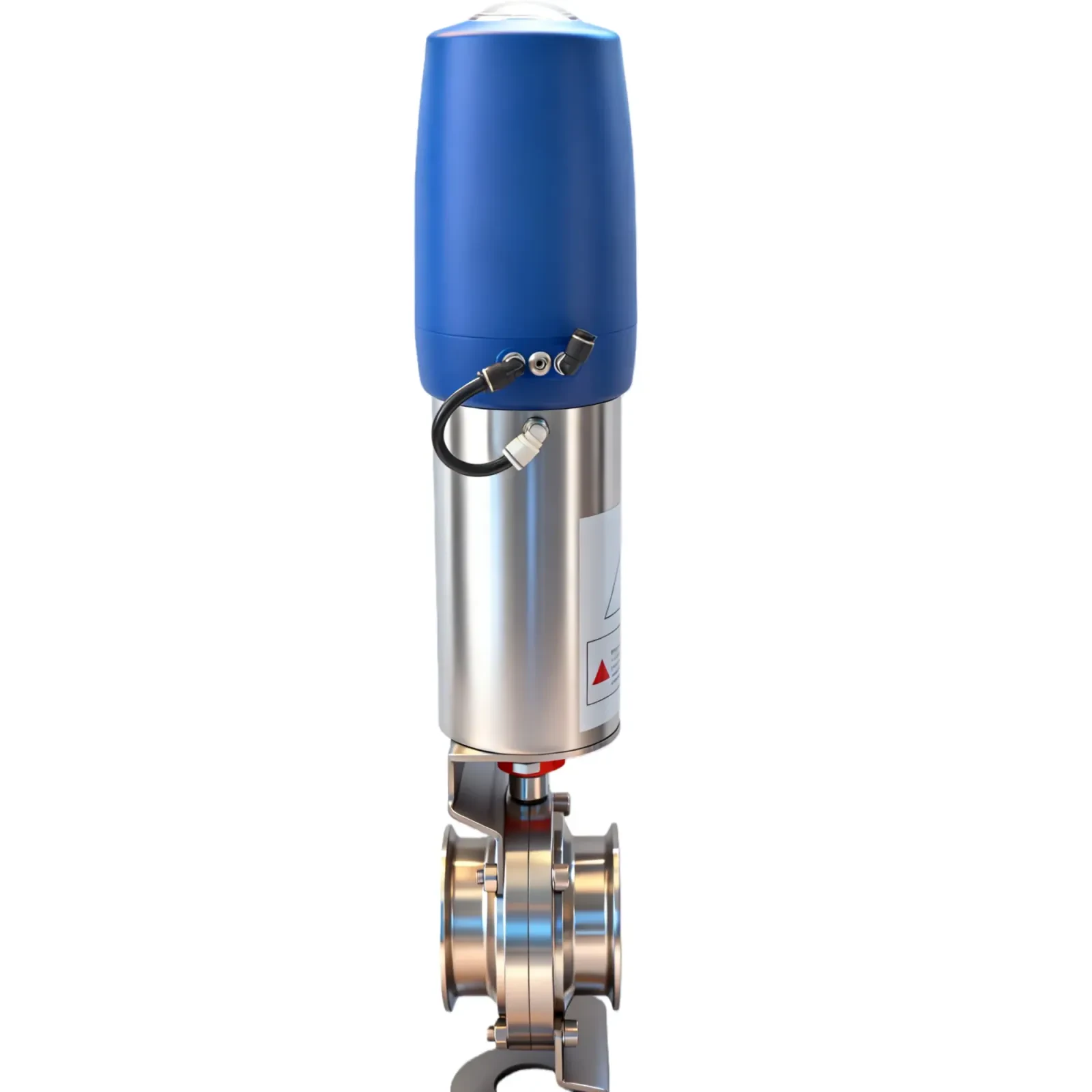

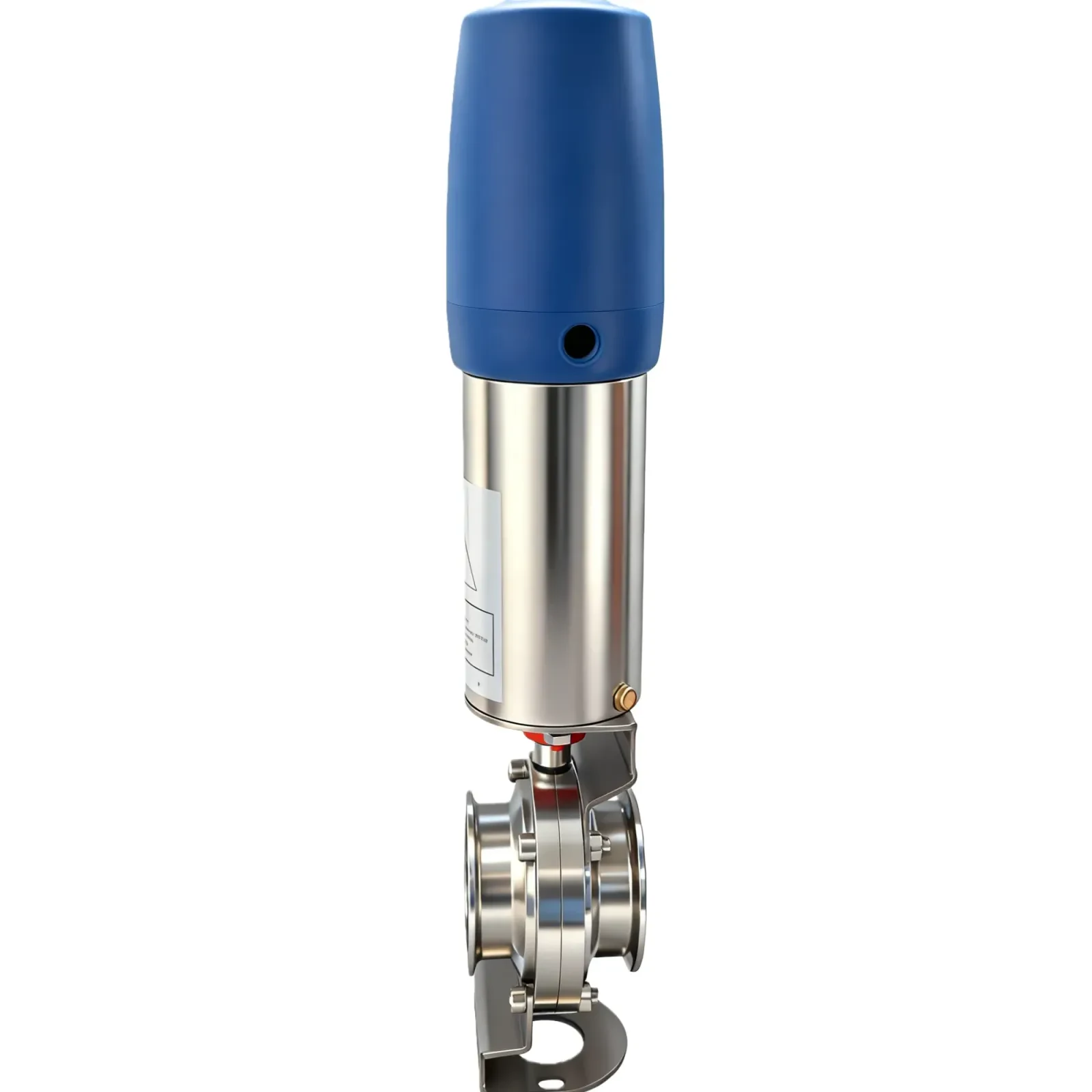

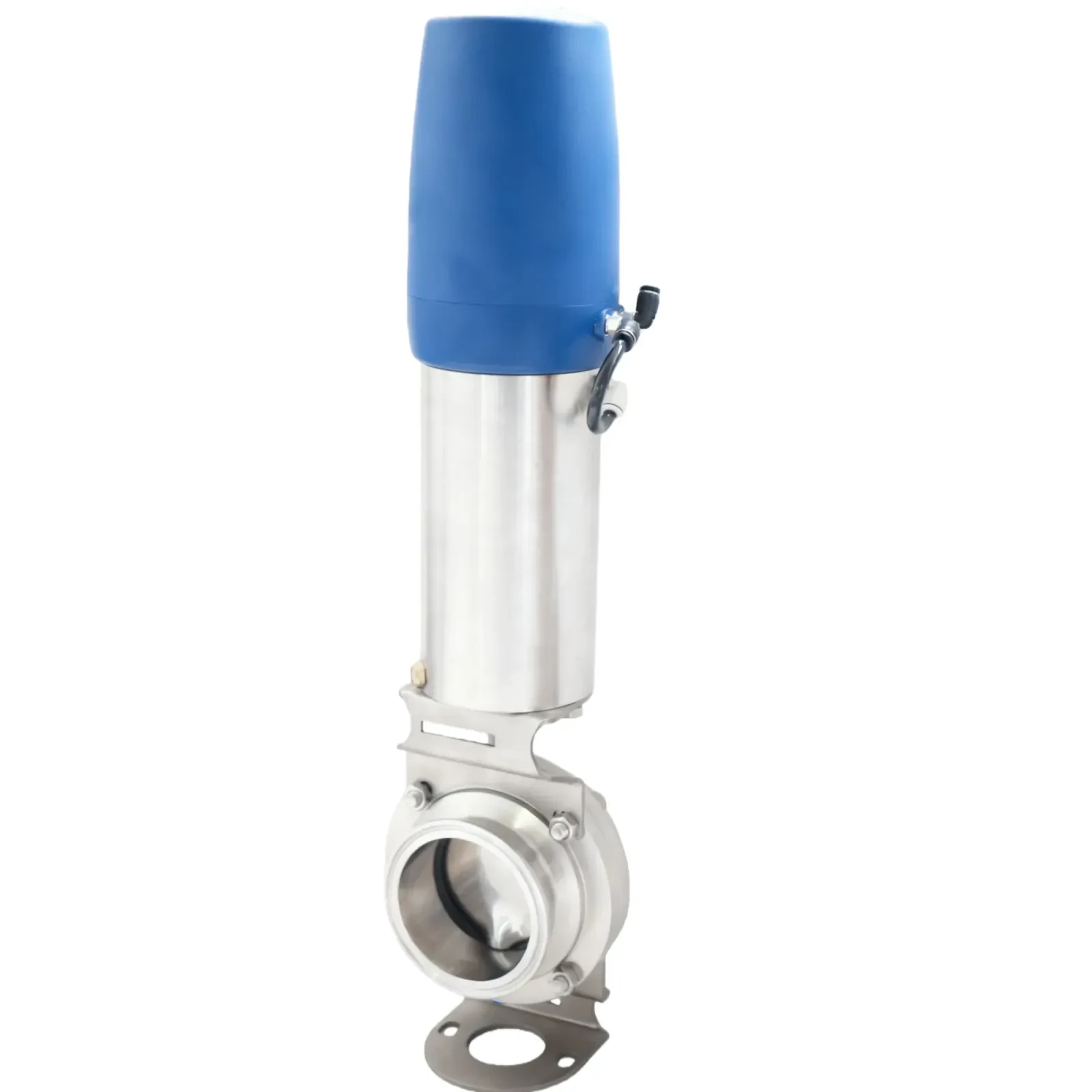

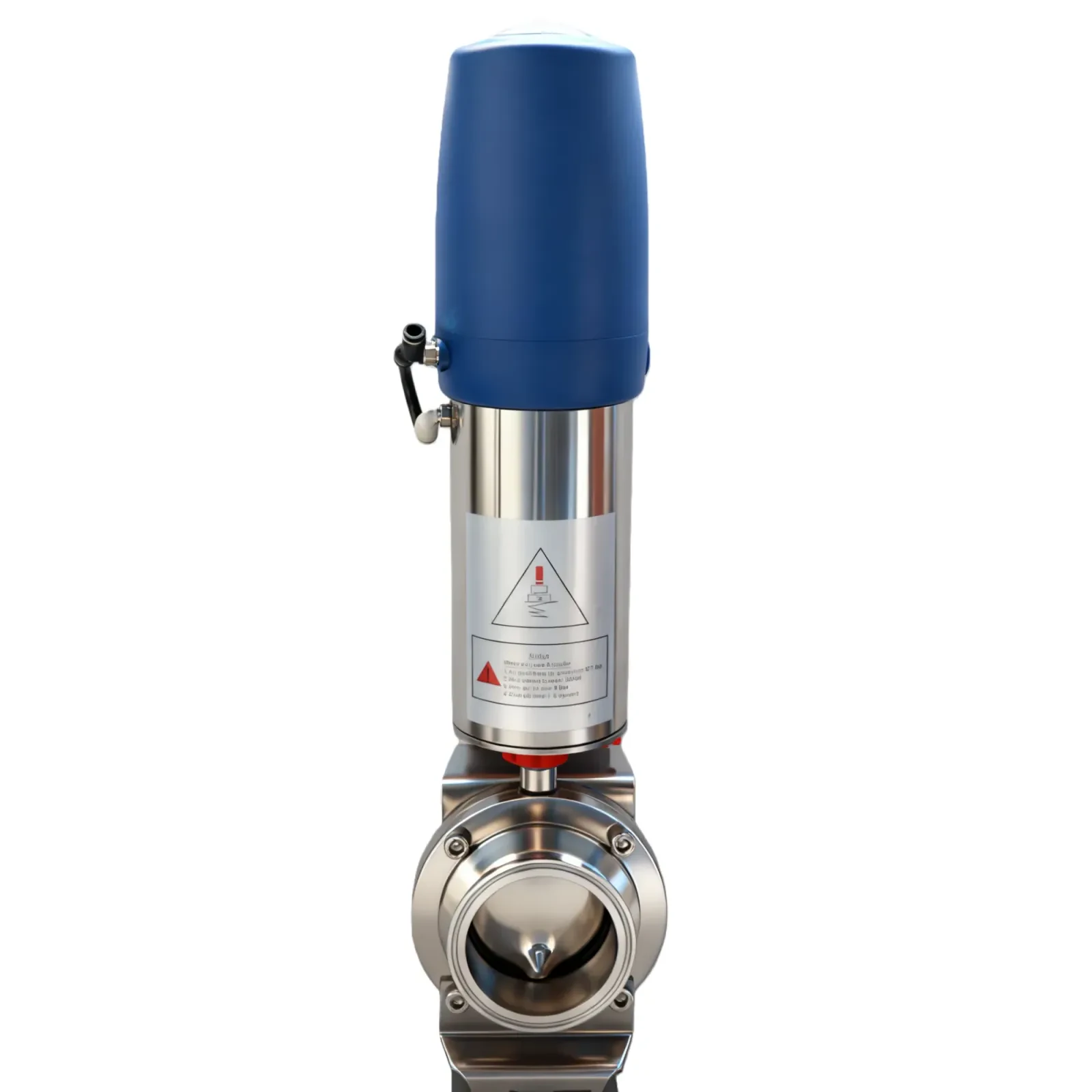

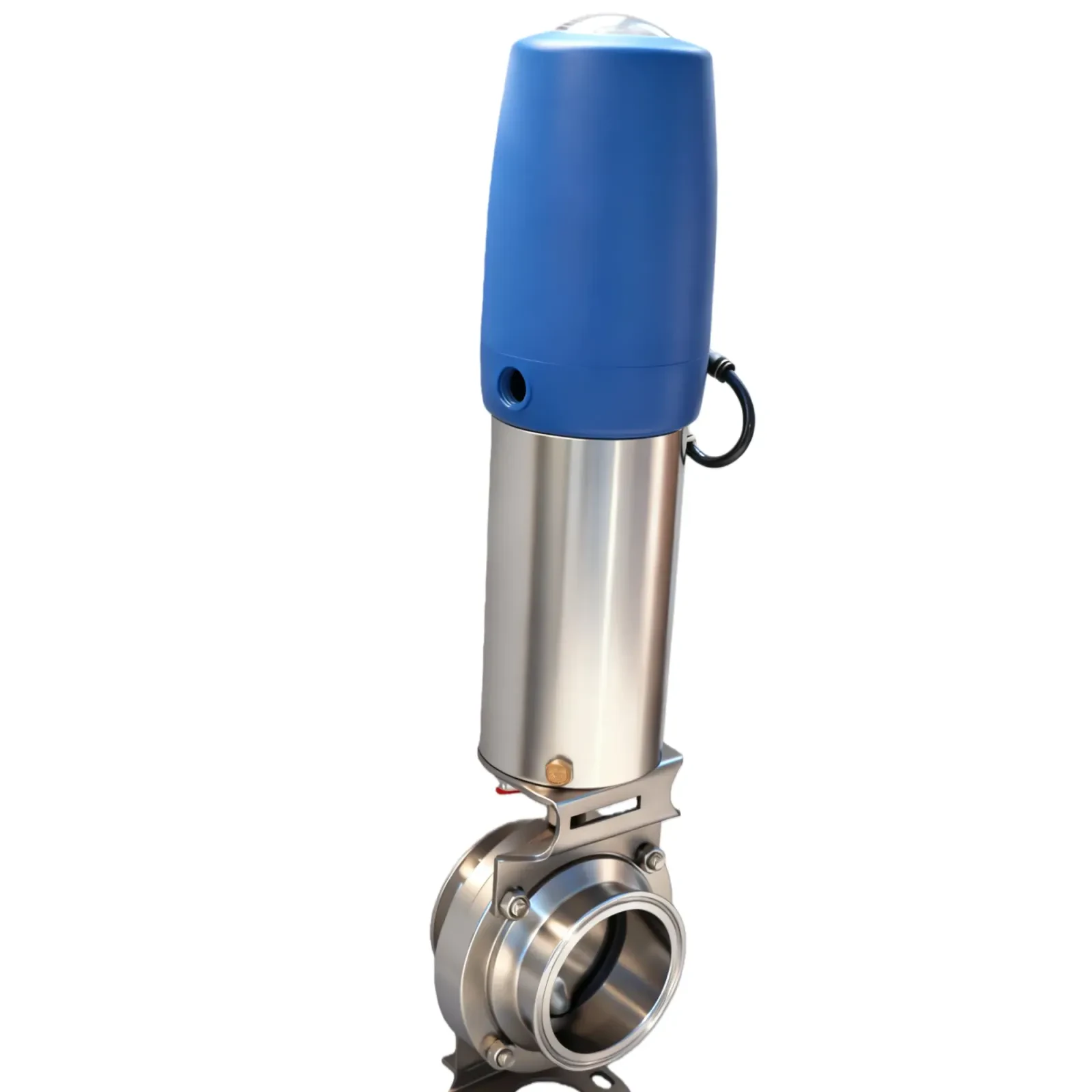

STAINLESS STEEL Pneumatic Diaphragm Actuated Powder Anti Mixing Butterfly Valve

This stainless steel pneumatic diaphragm actuated powder anti-mixing butterfly valve uses compressed air as its power source. When compressed air is supplied to the diaphragm actuator, it pushes the internal diaphragm to move, which then drives the valve stem and the connected butterfly disc to rotate. This rotational motion opens or closes the valve’s flow passage to control powder conveying. Equipped with a specialized anti-mixing structure, it effectively prevents cross-contamination and mixing of different powder media during pipeline switching, maintaining material purity. The stainless steel body ensures corrosion resistance, while the diaphragm actuator delivers stable, rapid and reliable actuation, making it suitable for automated powder handling and conveying systems.

Valve parts

• Seats and seals comply with FDA approved
• Special gasket design, fluid free of residue
• Better acid proof, alkali proof
• Small torque, light weight,simple structure
• 360 degree installation
• 100% tested and inspected
• Cost-efficient leakage protection
• More than thirty thousand safety test
• Low pressure losses
• Thorough cleaning,Hygienic exterior design
• Minimize turbulence and maximize fluid flow trough

The stainless steel butterfly valve is widely used in industries requiring reliable shutoff and corrosion resistance. Typical applications include chemical processing plants handling corrosive fluids, oil and gas pipelines for automated flow isolation, and power generation systems with high-temperature steam. It is also suitable for food, pharmaceutical, and water treatment facilities, where hygienic design, precise control, and automated operation are essential for maintaining process safety and efficiency.
