Angle Seat Valve

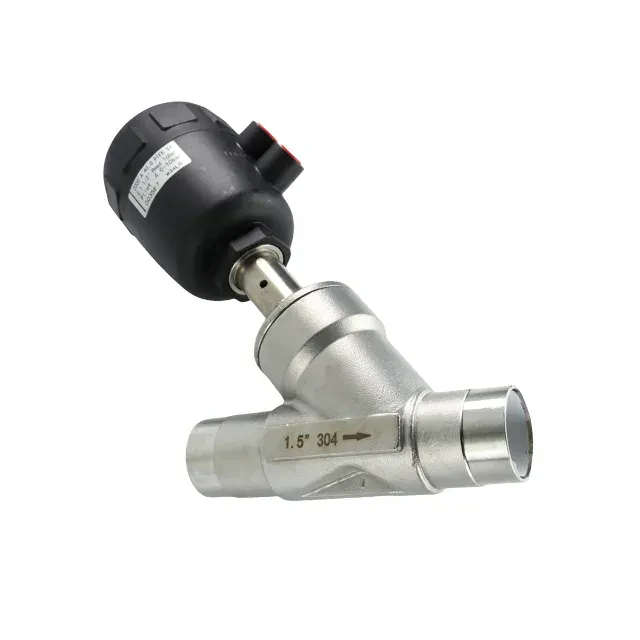

Stainless Steel Sanitary Pressure Normally Open Angle Seat Valve

Brand: JONENG
Model: JN-AS-1001
Part number: LD-519621498

The angle seat valve can save space by maintaining the flow rate. It is a pilot angle seat valve operated by a single-acting pneumatic actuator with spring safety protection. When using it, it should be normally open or normally closed. The product is made of stainless steel and PTFE. It can be used in most gas, liquid, steam and corrosive occasions. It has a radiator to protect the actuator. Ensure the valve has a long life.

The product is made of stainless steel and PTFE. It can be used in most gas, liquid, steam and corrosive occasions. It has a radiator to protect the actuator. Ensure the valve has a long life.

Max Working Pressure	1.6MPa
Medium Temperature	-10℃~+180℃
Ambient Temperature	-10℃~+55℃
Body Materials	CF8M(SS316),CF8(SS304)
Sealing Material	PTFE
Operation	Normally Closed, Normally Open, Double-acting or Manually
Connection End	Female, Weld,Clamp, Flange or on request
Size Range	DN10-DN100
Surface treatment	Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Standards	DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
Control type	Single acting, double acting
