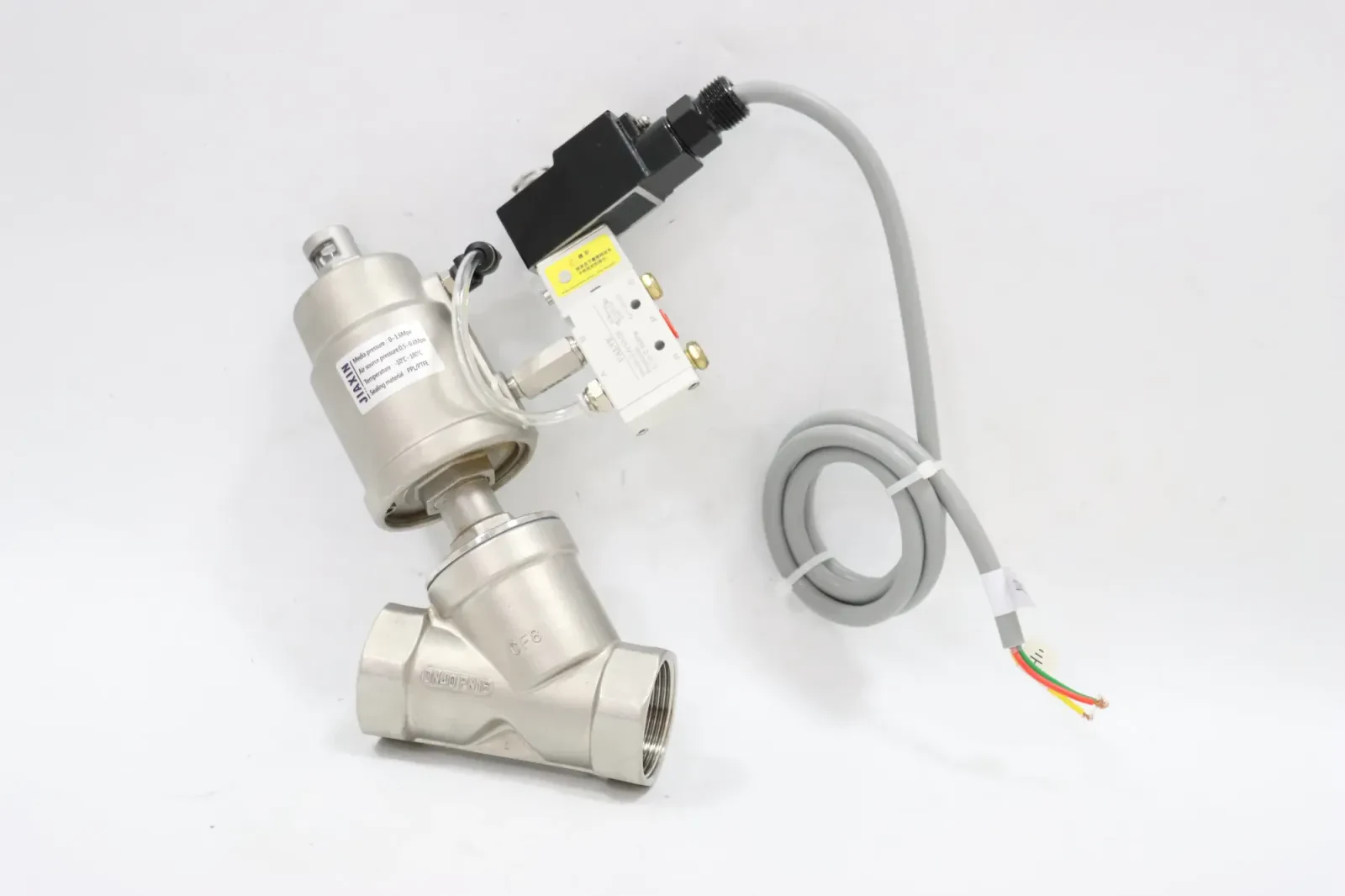

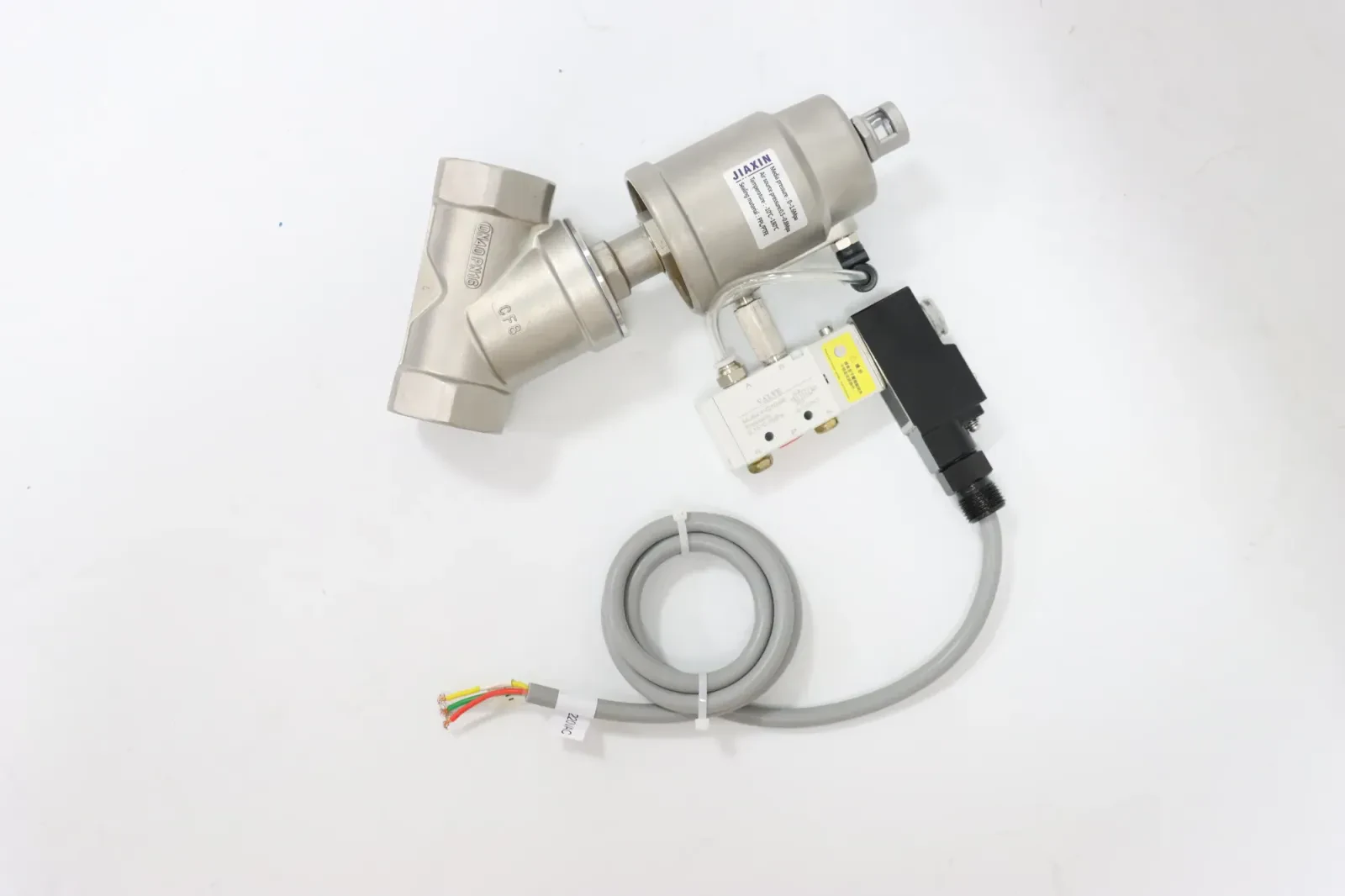

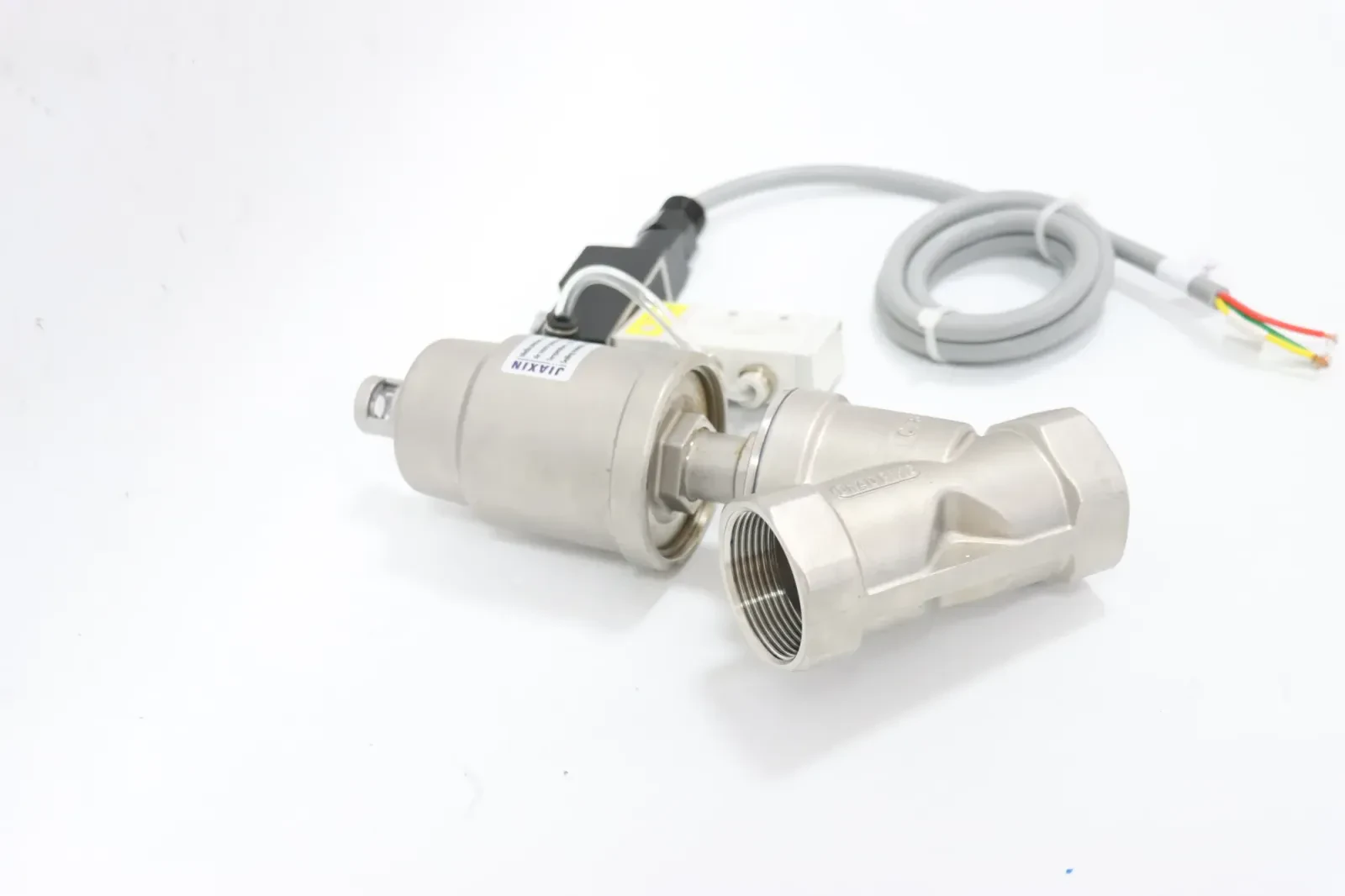

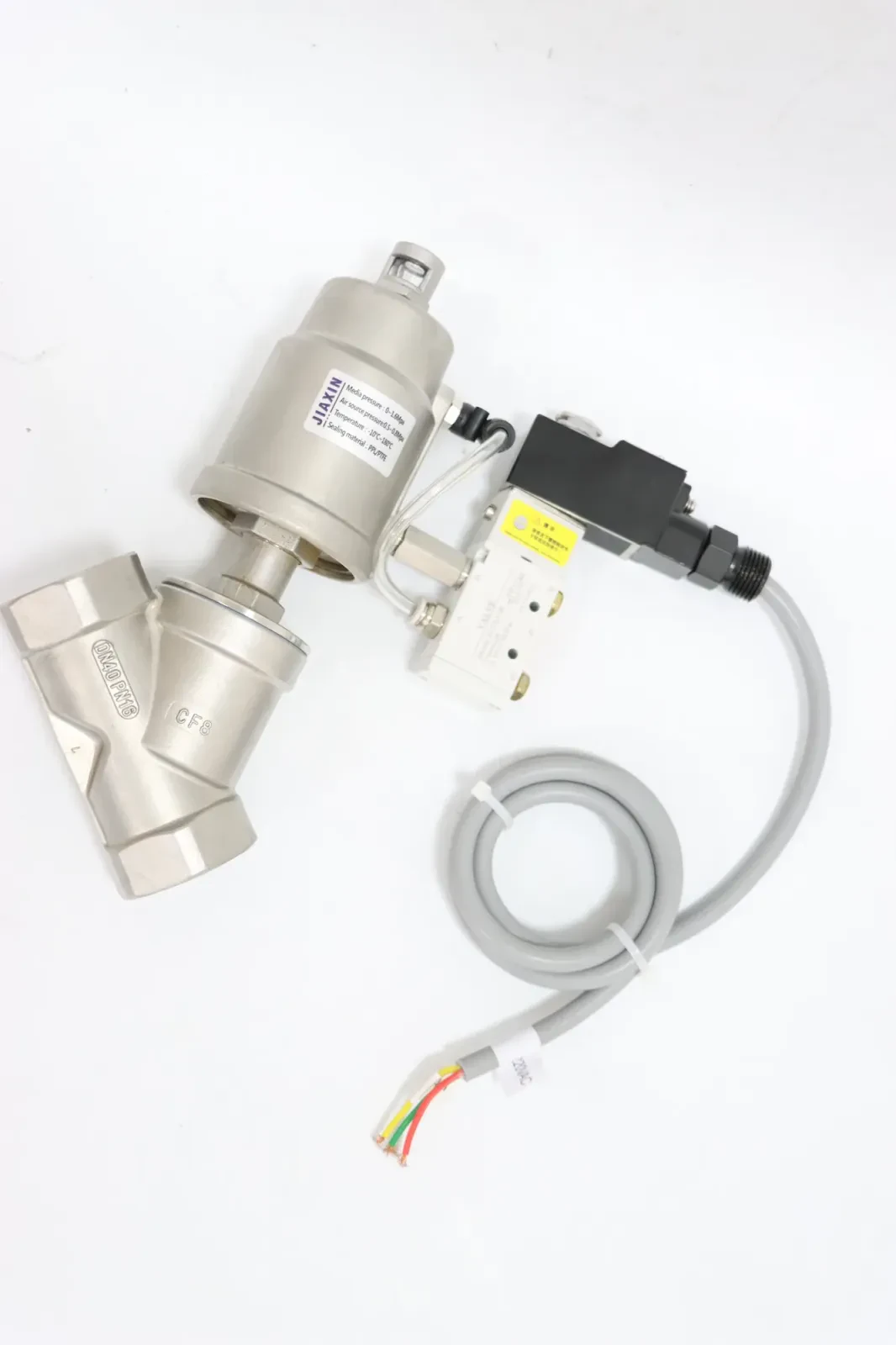

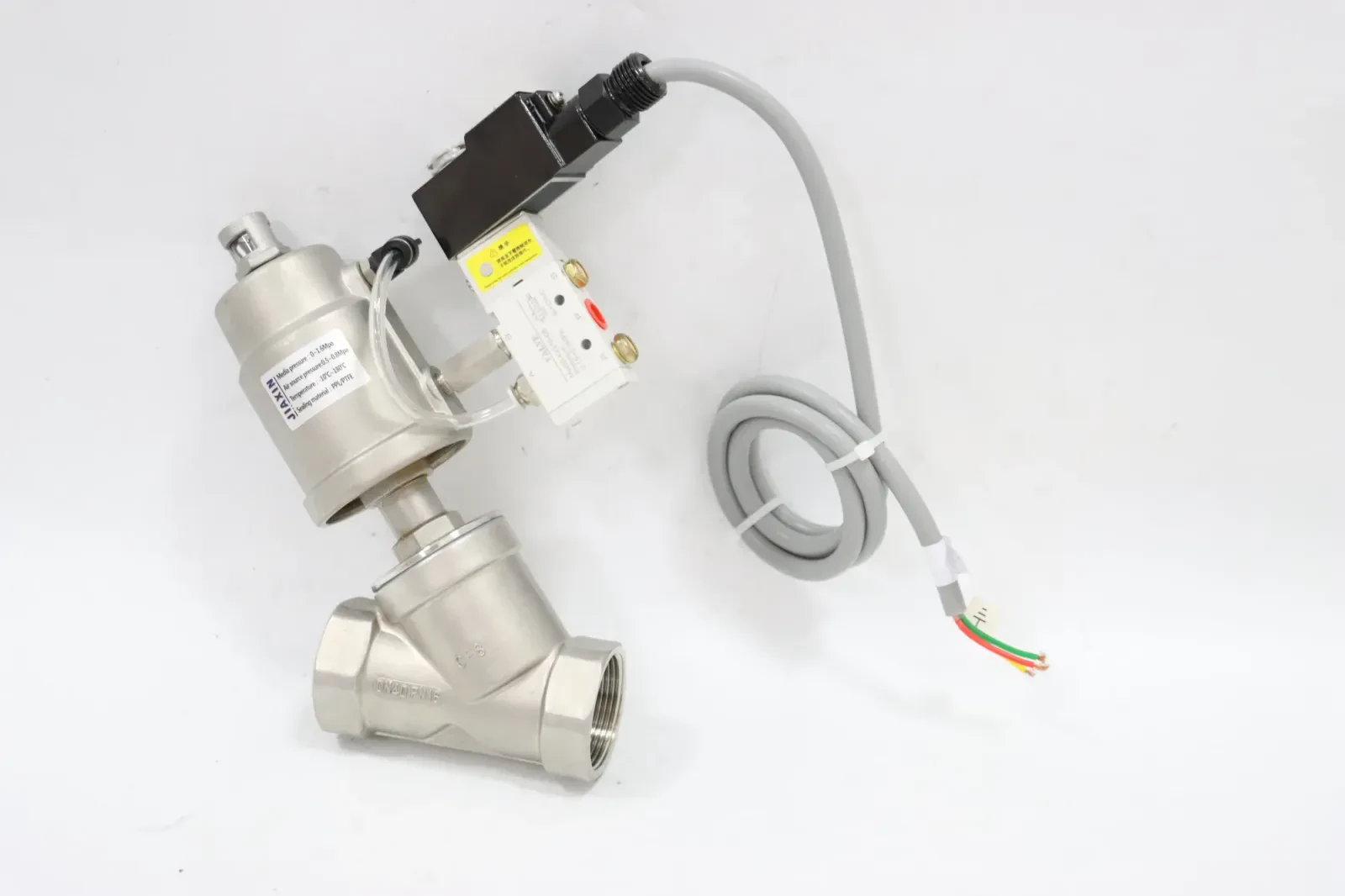

Stainless Steel Sanitary Pneumatic Threaded Piston Angle Seat Valve

The working principle of a Stainless Steel Sanitary Pneumatic Threaded Piston Angle Seat Valve involves controlling fluid flow through an angled seat using a pneumatic piston actuator. When compressed air is supplied, the piston moves linearly, lifting the valve plug from the seat and allowing fluid to flow smoothly through the valve. The angled seat reduces flow resistance and ensures efficient discharge. Releasing or reversing the air pressure pushes the piston back, pressing the plug firmly against the seat to create a tight seal and prevent leakage. This design enables rapid, precise, and automated control of liquids or gases while maintaining sanitary conditions for CIP and SIP cleaning processes

1. Constructed from high-quality stainless steel, providing excellent corrosion resistance and durability for hygienic fluid control in sanitary systems.
2. Pneumatic piston actuator delivers fast, precise, and automated valve operation, enhancing process efficiency and control reliability.
3. Threaded connection allows easy installation and integration into piping systems without welding, simplifying maintenance and replacement.
4. Angled seat design ensures smooth flow, minimizes pressure loss, and reduces turbulence during fluid discharge.
5. Hygienic polished surfaces and tight sealing enable leak-free performance and support clean-in-place (CIP) and sterilize-in-place (SIP) procedures.

Stainless Steel Sanitary Pneumatic Threaded Piston Angle Seat Valves are widely used in beverage and dairy industries for controlling water, juice, milk, or other liquid flows in automated production lines. They are also applied in pharmaceutical and cosmetic manufacturing, where precise, hygienic fluid control is critical. Their threaded design, pneumatic operation, and angled seat make them suitable for applications requiring easy installation, efficient flow regulation, and compliance with strict sanitary standards in high-purity processing environments
