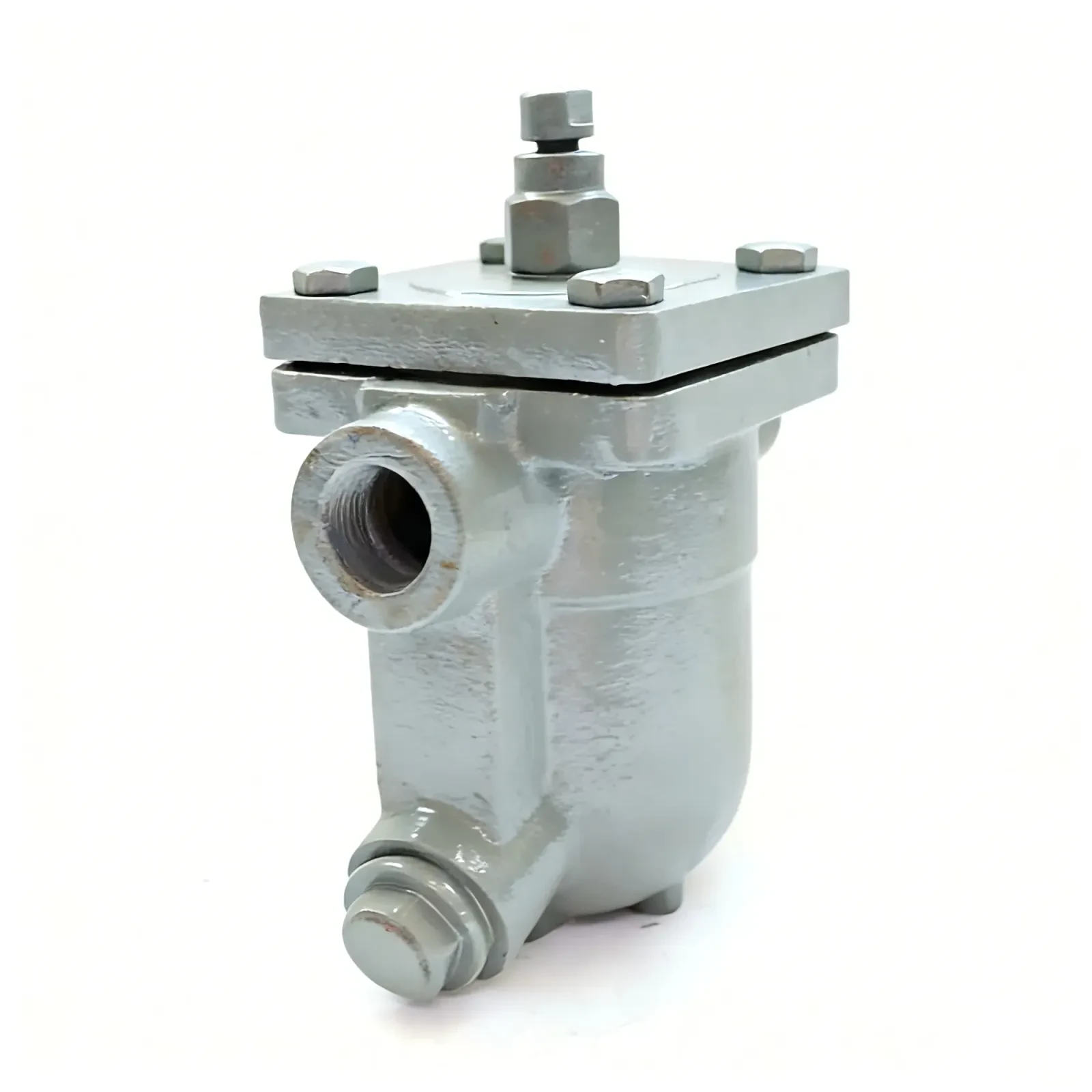

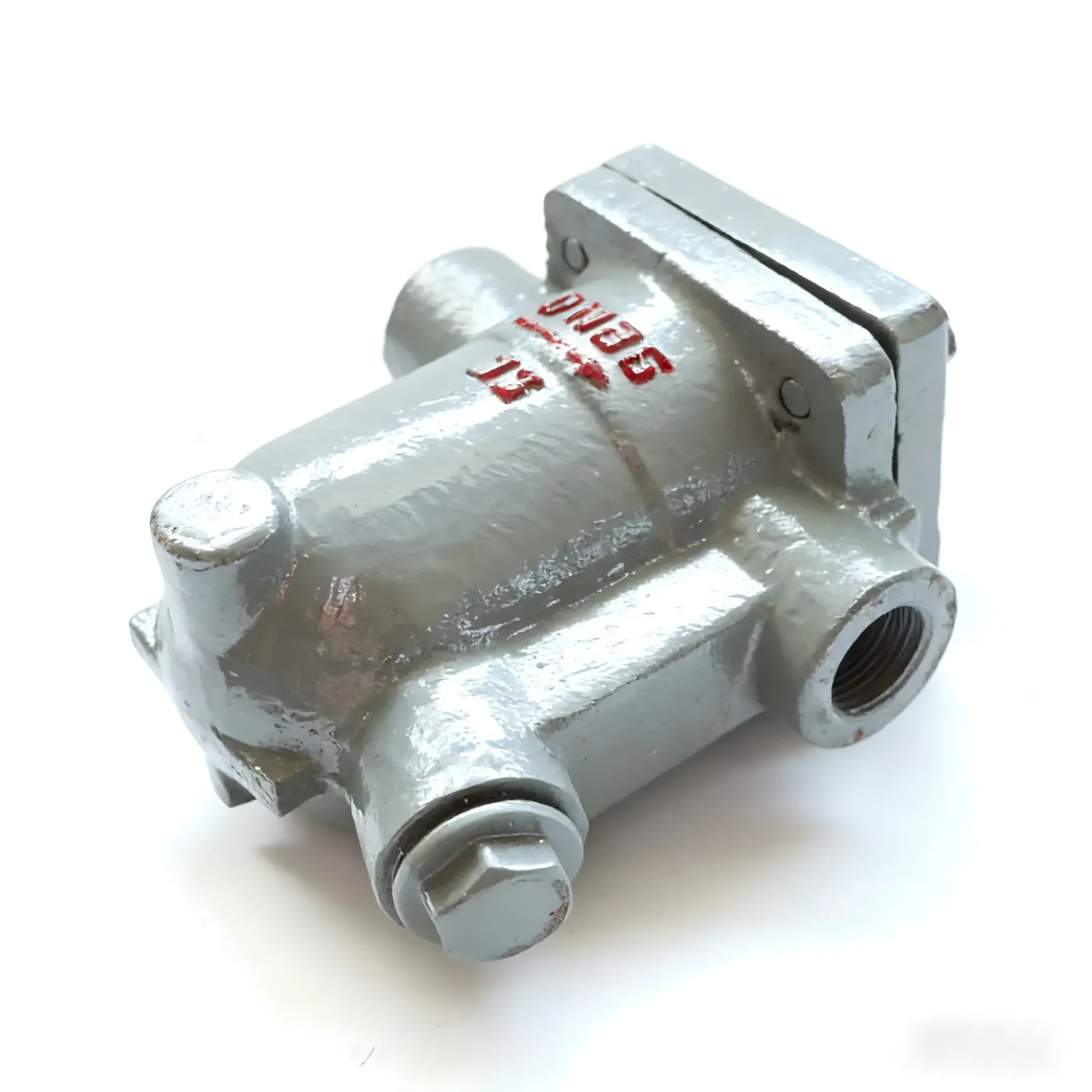

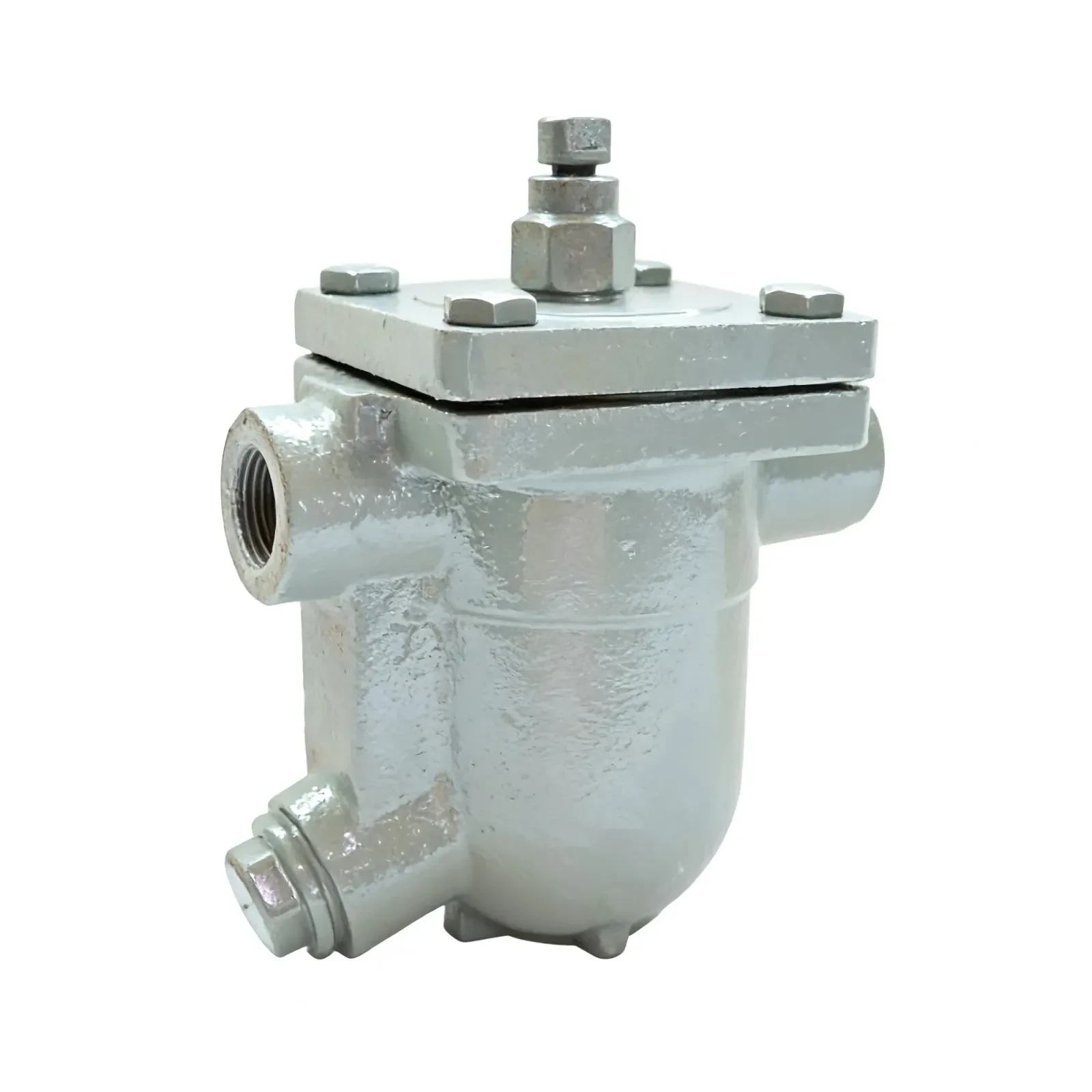

STAINLESS STEEL 304 Thermostatic Inverted Analyzer Steam Trap

This stainless steel float-type steam trap automatically drains condensate using changes in the condensate level. When condensate enters the valve body, the rising level pushes the float upwards, which in turn opens the valve core via a connecting rod, continuously discharging the condensate. When steam enters the valve body, the level drops, causing the float to sink and the valve core to close, preventing steam leakage. The clamp-on design allows for installation and maintenance without disassembling the piping, making it suitable for online testing and maintenance. This steam trap provides stable drainage, a sensitive response, effectively prevents water hammer, and ensures safe and efficient operation of the steam system.

• Made from SS304 stainless steel, offering excellent corrosion resistance and durability in high-temperature and high-pressure steam systems.
• Thermostatic inverted design ensures accurate condensate discharge while preventing steam loss and maintaining energy efficiency.
• Integrated analyzer monitors temperature and discharge behavior, enabling real-time performance evaluation and predictive maintenance.
• Compact structure allows easy installation in limited-space pipelines and process equipment without major modifications.
• Simple internal mechanism reduces maintenance frequency while providing reliable, efficient, and continuous operation in industrial applications

Stainless steel steam traps are widely used in the food processing, cosmetics, pharmaceutical, and chemical industries. For example, in the steam jacket piping of cosmetic emulsification kettles, they are used to drain condensate and monitor valve operation, ensuring uniform steam temperature and improving product quality and production efficiency.
