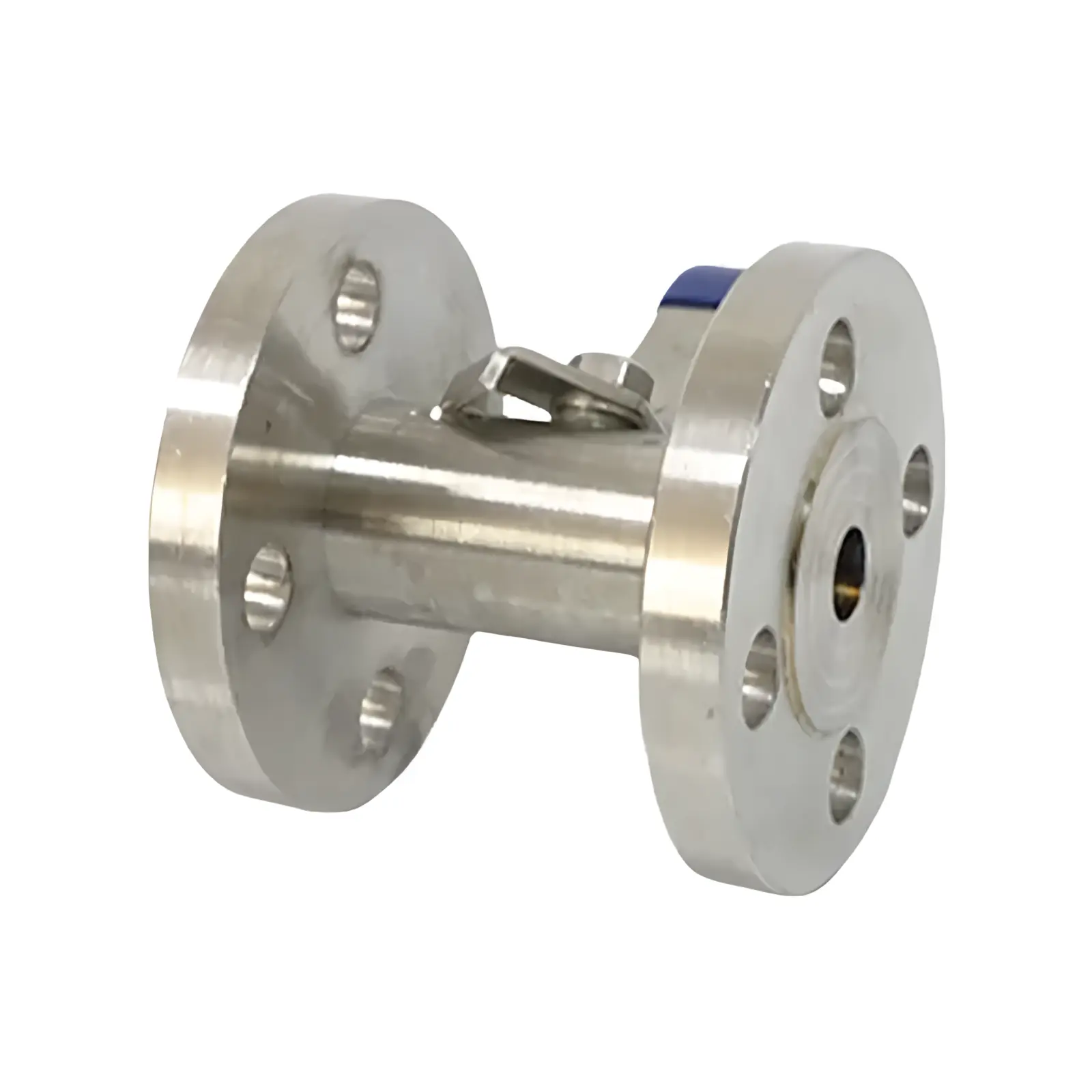

Stainless Steel Sanitary Polished Flange Straight-through Ball Valve

The working principle of the stainless steel sanitary flange straight-through ball valve is based on the rotation of the ball to control the on-off of the fluid. When the valve is in the open state, the through hole in the ball is connected to the inlet and outlet of the pipeline, and the fluid can flow freely; when the valve is closed, by rotating the valve stem, the through hole of the ball is disconnected from the outlet of the pipeline, and the fluid cannot flow. The close fit between the ball and the valve seat ensures good sealing and prevents leakage. The opening and closing process of this valve is achieved by rotating the ball, usually 90 degrees, so it has the characteristics of fast switching, which can quickly cut off or open the fluid flow, and is particularly suitable for pipeline systems that require efficient flow control and frequent operations.

The options of stainless steel sanitary flange straight-through ball valve include:

Connection method: flange connection

Drive method: manual, electric, pneumatic

Ball type: floating ball, fixed ball

Seal material: EPDM, PTFE, Viton

Specification size: customized according to pipeline size

Pressure level: different working pressures

Valve body surface treatment: polishing, sandblasting

• The stainless steel sanitary flange straight-through ball valve adopts an adaptive sealing design, and the sealing ring can automatically adjust the contact with the ball according to the slight deformation generated during use.
• The stainless steel sanitary flange straight-through ball valve adopts a dead zone flow channel design to avoid stagnation of fluid when flowing in the valve and reduce sediment or dirt accumulation.
• The surface of the stainless steel sanitary flange straight-through ball valve body and ball is treated with special anti-corrosion treatment, such as nitriding or coating, to enhance chemical corrosion resistance.
• The fluid channel in the stainless steel sanitary flange straight-through ball valve adopts an optimized fluid dynamics design to ensure pressure balance and reduce turbulence when the fluid flows.
• The stainless steel sanitary flange straight-through ball valve adopts a high-pressure sealing system to ensure that the seal between the ball and the valve seat is not affected under high pressure conditions to prevent leakage.
• The stainless steel sanitary flange straight-through ball valve is equipped with an intelligent fast response control system, which can quickly complete the switching operation through electric or pneumatic drive.

Stainless steel sanitary flange straight-through ball valves are widely used in the following industries, food and beverage: aseptic filling line, corrosion-resistant and easy to clean. Pharmaceutical industry: liquid medicine delivery system, GMP certification guarantee. Bioengineering: fermentation tank pipeline, zero pollution control. Dairy processing: milk pipeline system, sanitary seal. Cosmetics industry: raw material delivery valve, anti-chemical residue. Semiconductor industry: high-purity fluid control, suitable for clean rooms.
