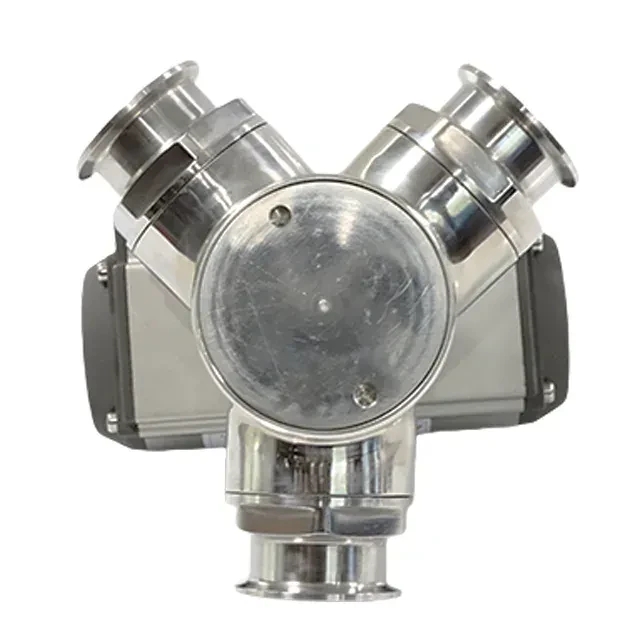

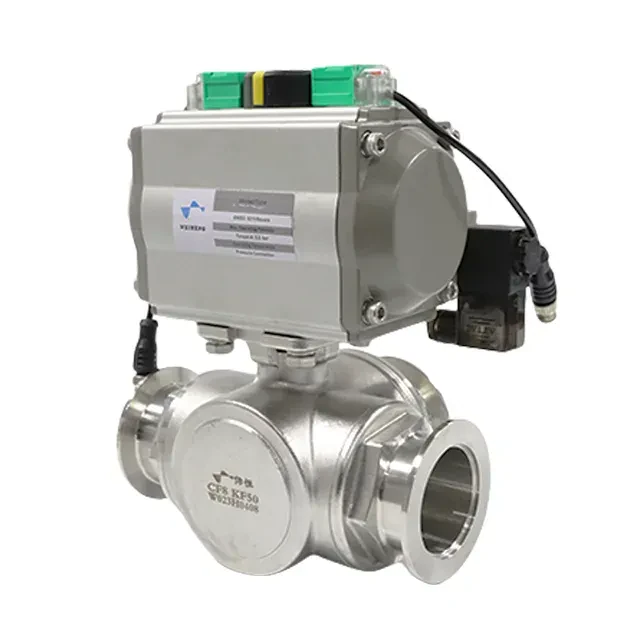

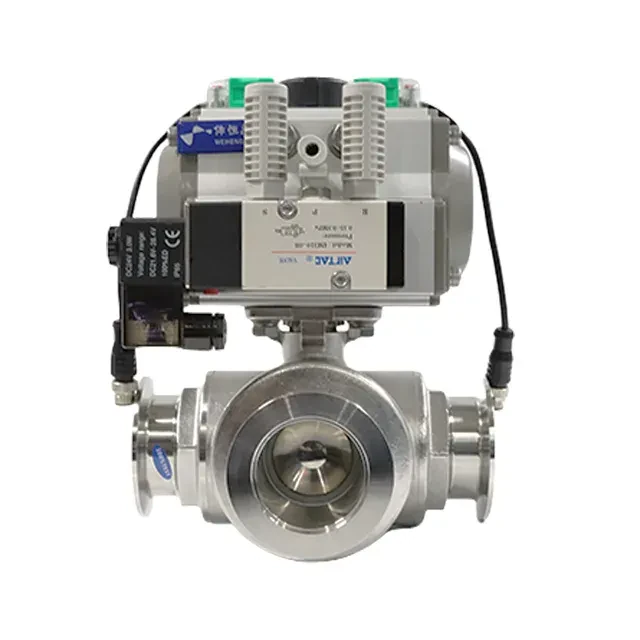

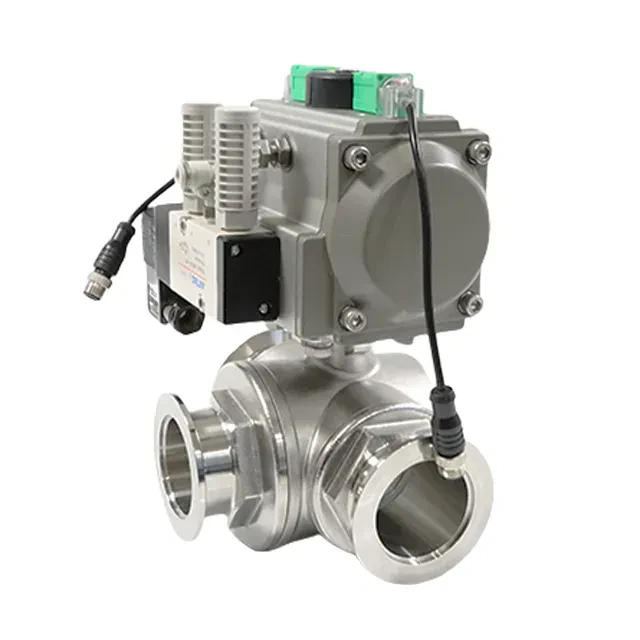

Stainless Steel Sanitary Quick-install Three-way Ball Valve Electric Actuator

The working principle of the stainless steel sanitary three-way ball valve actuator is based on the automatic control system, which controls the switch state of the three-way ball valve through electric or pneumatic drive. First, the control system sends instructions to the actuator according to the set signal (such as PLC controller or remote operation). After receiving the signal, the electric actuator drives the valve stem to rotate through the motor to change the opening angle of the ball in the ball valve, thereby adjusting the flow direction or flow of the fluid; the pneumatic actuator drives the piston or cylinder through compressed air to complete similar valve adjustment actions.

The options of the stainless steel sanitary three-way ball valve actuator include:

Drive mode: electric, pneumatic, manual.

Control mode: switch type, regulation type, intelligent type.

Sealing material: PTFE, EPDM, Viton.

Power supply type: AC power supply, DC power supply.

Connection mode: flange connection, quick connection.

Protection level: IP65, IP67.

Temperature range: normal temperature, high temperature.

• The stainless steel sanitary three-way ball valve actuator is equipped with an electromagnetic shielding design to avoid the influence of external electromagnetic interference on the control system and ensure the stable operation of the actuator.
• The stainless steel sanitary three-way ball valve actuator has a built-in intelligent adaptive control system, which can automatically adjust the valve opening according to the pressure and flow rate of the fluid in the pipeline to adapt to different operating requirements.
• The stainless steel sanitary three-way ball valve actuator is designed with a high-speed response mechanism, which can complete the valve opening and closing action in a short time, suitable for occasions with frequent opening and closing.
• The stainless steel sanitary three-way ball valve actuator has a self-diagnosis function, which can provide real-time feedback through the control system and prompt maintenance personnel to perform maintenance when a fault occurs.
• The stainless steel sanitary three-way ball valve actuator adopts a double sealing design, which further enhances the sealing of the equipment and prevents leakage.
• The stainless steel sanitary three-way ball valve actuator adopts a modular design, which can quickly replace components according to different needs, and improve the convenience of maintenance and upgrading.

Stainless steel sanitary duckbill quick-install manual butterfly valves are widely used in the following industries: Food industry: used for precise fluid control of food raw materials and finished products. Beverage industry: used for the delivery and flow control of juice and carbonated beverages. Pharmaceutical industry: to ensure the pollution-free and sanitary control of the flow of liquid medicine. Cosmetic industry: used for the flow control of cosmetic materials such as lotions and creams. Dairy industry: to accurately control the flow of fluids such as milk and cream. Chemical industry: used for the delivery of chemicals and corrosive substances. Water treatment industry: to deliver water treatment agents and chemical additives.
