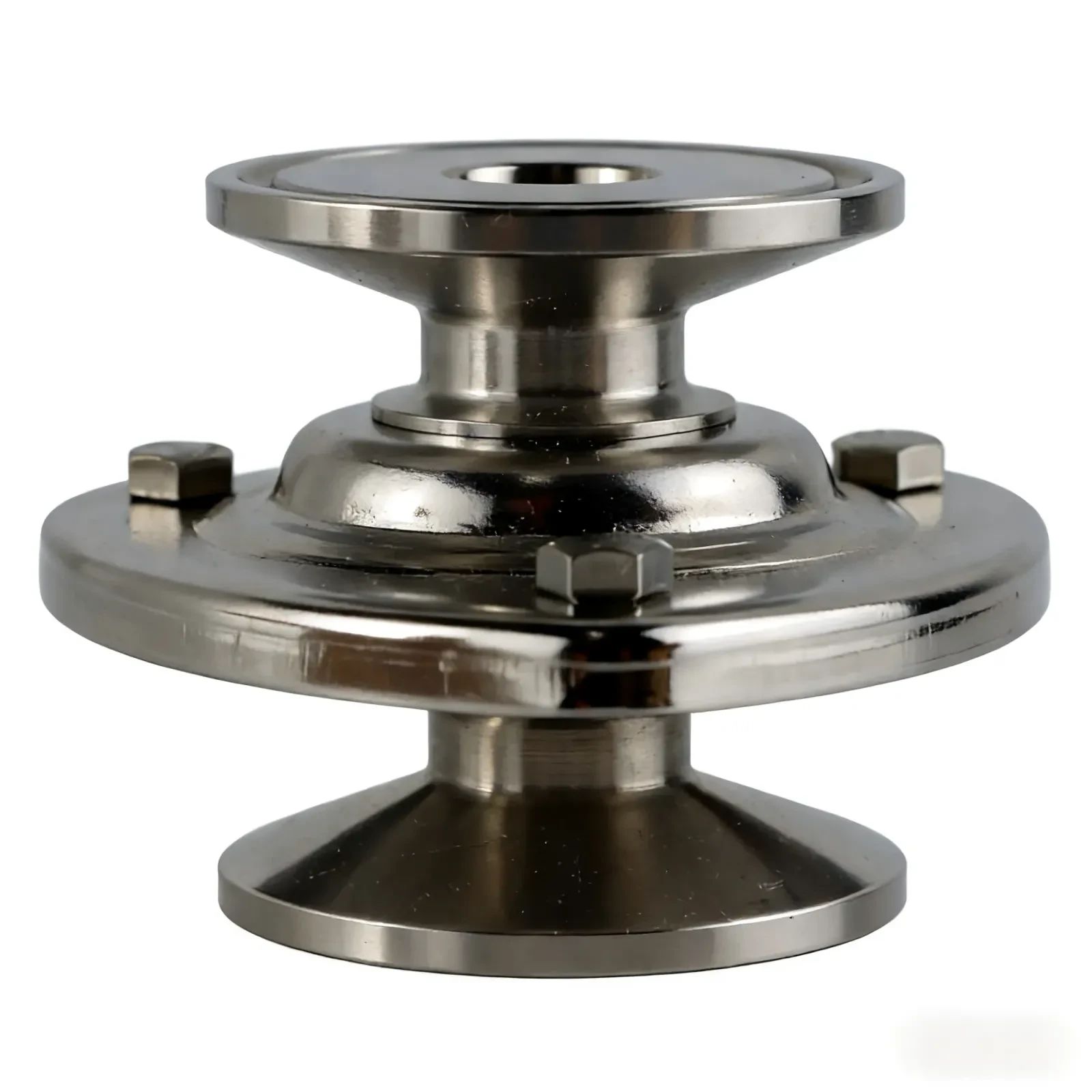

STAINLESS STEEL Inverted Bucket 3/4" Thermostatic Testing Steam Trap

This steam trap utilizes the density difference between steam and condensate to achieve automatic opening and closing. During startup, condensate enters the valve body, the inverted bucket sinks, and the valve opens to discharge condensate and air. When steam enters, the inverted bucket rises due to buoyancy, closing the valve core to prevent steam leakage. A built-in temperature control element assists in venting at low temperatures, improving startup efficiency. The 3/4-inch interface facilitates installation, and the test configuration supports online testing of steam trap performance, making it suitable for stable, continuous steam system operation.

• Combines inverted bucket and thermostatic mechanisms to ensure reliable condensate discharge while preventing live steam loss, maintaining stable operation under fluctuating pressure and load conditions in steam systems.
• Manufactured from stainless steel for excellent corrosion resistance, high temperature tolerance, and long service life, making it suitable for hygienic, chemical, and industrial steam applications.
• Designed with a 3/4 inch connection size, offering easy integration into standard steam lines while supporting efficient condensate removal and consistent thermal performance.
• Provides accurate testing and monitoring capability, allowing operators to evaluate trap performance during operation without system shutdown, improving maintenance efficiency and system reliability.
• Features a compact and robust internal structure that resists water hammer and dirt accumulation, ensuring stable operation and reduced risk of blockage or mechanical failure.

The steam traps are widely used in food processing, pharmaceutical, chemical, and paper industries. In food plants, they remove condensate from boilers and heating pipes, ensuring uniform steam heating, improving production efficiency, and preventing equipment corrosion and water hammer.
